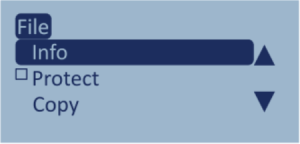

Menu Options - File Menu

Press the OK button with this selection highlighted to view the file information for the selected file.

Use the arrow buttons to navigate through the following:

• The file name
• The file size
• The file duration
• The bandwidth configuration for each channel
• The quantization configuration for each channel
• The frequency configuration for each channel
• The digital channel configuration
• The CLK REF source
• Linked

Press the OK button to return to the File Menu.

This option gives you the ability to write protect the selected file to avoid accidental copying or deletion.

Press the OK button with this option highlighted to enable Write Protect.

This will hide the Copy and Delete options for the file.

Press the OK button with this option highlighted to copy the selected file to the connected USB media.

Press the OK button with this option highlighted to delete the selected file.

Press the OK button with this selection highlighted to view the file information for the selected file.

Use the arrow buttons to navigate through the following:

• The file name
• The file size
• The file duration
• The bandwidth configuration for each channel
• The quantization configuration for each channel
• The frequency configuration for each channel
• The digital channel configuration
• The CLK REF source
• Linked

Press the OK button to return to the File Menu.

This option gives you the ability to write protect the selected file to avoid accidental copying or deletion.

Press the OK button with this option highlighted to enable Write Protect.

This will hide the Copy and Delete options for the file.

Press the OK button with this option highlighted to copy the selected file to the connected USB media.

Press the OK button with this option highlighted to delete the selected file.

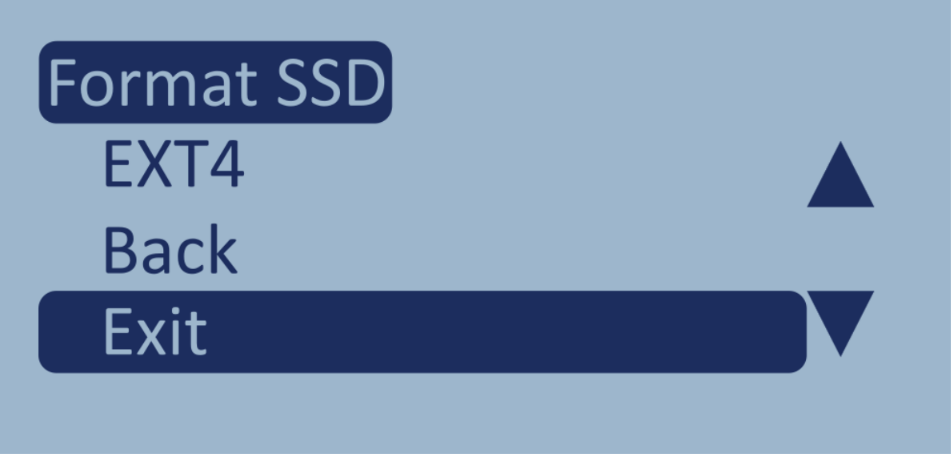

You can format the internal SSD directly via the File Menu. This will erase the current content on the SSD (if applicable) and format it.

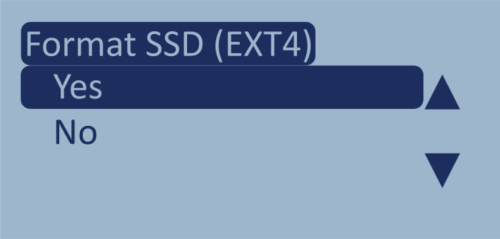

Press the OK button with this option highlighted to open the Format SSD Menu.

Press the OK button with this option highlighted to return to the Main Menu.

Press the OK button with this option highlighted to exit to the File Selection Screen.
