Mounting and Connecting

  1. Last updated
  2. Save as PDF

Mounting

VBOX Omega has been designed to generate as little heat as possible and has a wide operating temperature range. It is, however, good practice to mount it in a position with sufficient airflow around the unit.

When installing VBOX Omega in your vehicle, you can either fix it rigidly to the vehicle using the fixing holes or secure it with a telescopic mounting arm.

Try to position VBOX Omega as close to the centre of the vehicle as possible, and ensure that it is level with the ground, and ideally in the direction of travel for when using the internal IMU. If this is not possible, you can change the orientation of the internal IMU in the VBOX Setup Software or on the Front Panel.

Note: VBOX Omega and the antenna should be mounted on the same rigid body to provide a relative reference. So for a vehicle such as a truck cabin, both VBOX Omega and the antenna should be fitted to the cabin body (if the cabin is air-sprung) or to the vehicle chassis.

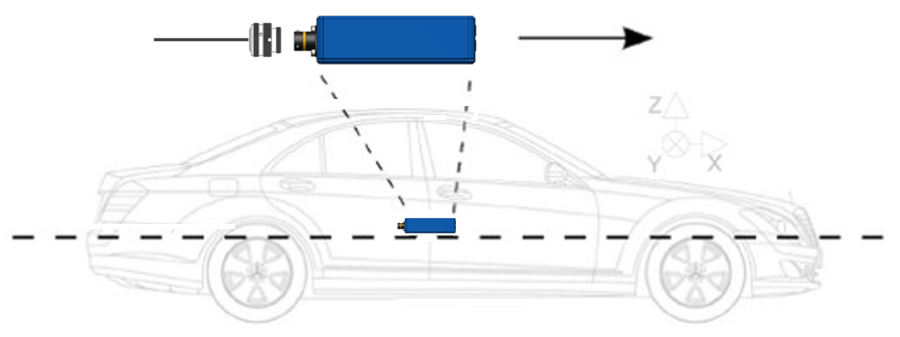

VBOX Omega Mounting Fixed.png

Fixed Mounting

You can mount VBOX Omega rigidly to the vehicle via the fixing holes, ideally mid-way along the wheelbase.

Using a Mounting Arm

A flexible way to fix VBOX Omega rigidly in the vehicle is by using the Racelogic Mounting Arm (RLACS212-V2). The three-part telescopic handle is fully adjustable to any length between 70 – 150 cm, to which another 20 cm can be added by extending the third section using the compression lever. Both ends are fixed to an 8 x 13 cm plate which sits on a joint to accommodate uneven surfaces.

Mounting Option 1
  1. Place VBOX Omega on the floor of the vehicle.
  2. Place one end of the mounting arm over VBOX Omega.
  3.  Extend the mounting arm until it is pressed securely against the vehicle's ceiling.
Mounting Option 2

Another option is to use a bracket (RLACS291) that attaches to the mounting arm, meaning that VBOX Omega can be fixed to the mounting arm before being installed within the vehicle.

  1. Attach VBOX Omega to the mounting bracket.
  2. Attach the mounting bracket to the mounting arm.
  3. Position one end of the mounting arm on the floor of the vehicle.
  4. Extend the mounting arm until the other end is securely pressed against the vehicle's ceiling.
Note: If using the bracket, it is recommended that VBOX Omega is mounted vertically towards the bottom of the pole for greater stability.

Mounting VBOX Omega Using RLACS295


Please contact vbox@racelogic.co.uk for more information or to order a mounting arm (RLACS212-V2) and/or mounting bracket (RLACS291).

Antenna Placement

For information on the recommended way to place your GNSS antenna, click here.

Hardware Connections

VBOX Omega Connections 945 px W (v1.0 TS 28MAR2023).png

Connecting the Loom to the VBOX Omega
Note: It is important that you do not use force when connecting and disconnecting the loom to VBOX Omega.
VB3iS-connector.png RLCAB163-connector.png
  1. Look at the connectors on both the loom and the unit.
  1. Locate the different-sized inner notches on the loom's connector and line them up with the equivalent notches on the unit's connector.
  1. Note the outer notches on the connector.
VBOX 3iSD-connector.png VBOX 3iSD-connector_inner notches.png VBOX 3iSD-connector_outer notches.png
Push the connectors gently together and twist the outer ring on the loom's connector until it slots in place and locks the connection.
Disconnecting the Loom from VBOX Omega

Note the notches on the connectors as illustrated above. Twist the loom's connector while you gently pull it away from the unit.
