This page contains an overview of the features and settings in the Channel Setup Menu in VBOX Setup Connected to VBOX 4 Dynamics.

The Channel Setup menu displays the channels that are available to be configured. The available channels will vary depending on the Racelogic modules connected to your VBOX unit and your configurations in other menus.


Buttons and Features

Rescan Modules

If you connect or disconnect a module to the VBOX unit while VBOX Setup is already connected and running, you can click on the Rescan modules button to make it display an updated list of the currently connected modules.
Available Channels

In the channels area, you will see a list of default channels that are available based on the current connections and configuration and any manually added channels. This section will update as you edit the configuration or add/remove modules.

Select a channel section by clicking on the section heading, such as CAN Input or Internal A/D. This will open the selected section so that you can see the available channels and their previews.

Note: All added channels will automatically be logged to the SD card.
Log

Default channels will always be logged and cannot be unticked.

Manually added channels from modules or CAN Input signals will automatically be ticked to log when added.

You can untick the box in the Log column for a channel you don't want to log.

VBOXSetup_VBOX4D_UntickCAN Channels_750px.gif

 VBOX Channels


This section will always be available. It has two channel sections displayed by default with configurable channels:
CAN Input

You can add CAN signals you want to log by clicking on the CAN Input section heading in the channels overview and selecting the required source in the Add CAN Signals area on the right-hand side of the window. Tick the required signals in the list. The selected signals will populate in the CAN Input section in the channel overview area.

You can configure the CAN port in the CAN menu.
Vehicle Database

Select a vehicle make and model and tick the channels you want to log from the list of available channels below.
Import from dbc/ref

Import an existing file, .dbc or .ref, from your local computer. When the file has been imported, you can tick the channels you want to log from the list of available channels below.
User defined

You can define a custom CAN channel by clicking the Add New button and entering a name and other relevant information in the configuration options below.

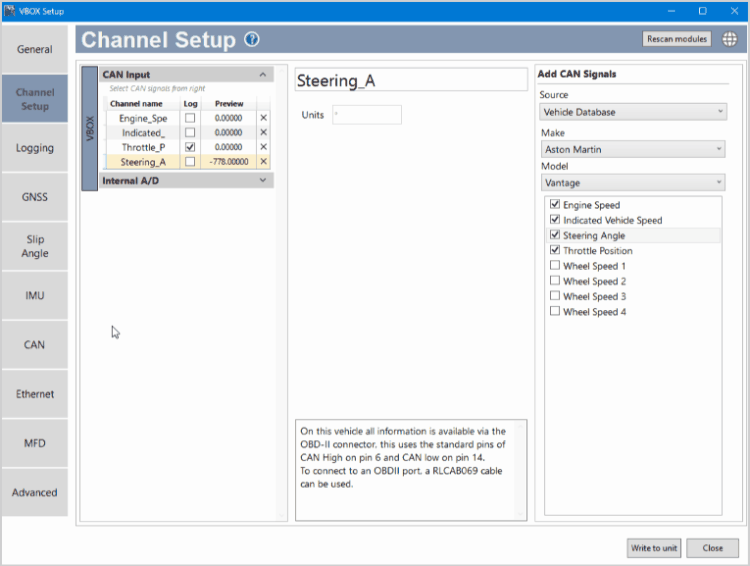

Remove Added CAN Input

You can remove manually added channels from modules or CAN input signals.

Click on the X in the final column for the relevant channel row to remove a channel.


Internal A/D

This area contains channels such as Analogue Inputs by default:

  • ADC_CH1
  • ADC_CH2
  • ADC_CH3
  • ADC_CH4


Dual Antenna

When you enable Dual Antenna in the GNSS menu, the following channels will be logged:

  • Dual Status
  • Pitch Ang
  • Roll Angle
  • Yaw Rate
  • True Heading
  • TrueHeadFil


IMU Attitude

When you enable IMU integration in the IMU menu, the following IMU attitude channels will be logged:

  • Head_imu
  • Pitch_imu
  • Roll_imu
  • Pos.Qual.*
  • Lng_Jerk
  • Lat_Jerk

*Position quality is for use in robot modes and is a numerical representation of the quality of the position.

You can find more information about the different channel definitions here.
Slip Module

When you enable Dual Antenna in the GNSS menu or IMU integration in the IMU menu, the following channels will be logged:

  • Slip IMU
  • Slip DANT
  • Slip FL
  • Slip FR
  • Slip RL
  • Slip RR
  • Slip COG
  • Lat Vel
  • Long Vel
  • RobotHead

You can find more information about the different channel definitions here.
