Menu Options - Main Menu

The Track Select Menu lists the available track layouts relative to the detected location. A tick mark will identify the selected track.

Select the track you want to use by pressing the OK button with the relevant track highlighted.

The Scene Select Menu lists the available scenes loaded into the connected VBOX unit. A tick mark will identify the selected scene. There is also a default scene included in the firmware.

Select the scene you want to use by pressing the OK button with the relevant scene highlighted.

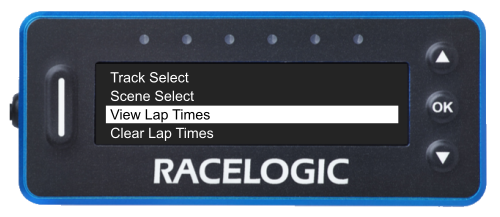

The View Lap Times option will list all logged lap times from the current session. Press the OK button with this option highlighted to view the list.

Click on the OK button with this option highlighted to delete all stored lap times from the OLED Display’s memory.

The Predictive Lap Timing Menu contains settings for the Predictive Lap Timing Mode, such as Bar Range, Delta-T Speed Mode, Transfer and Load the Reference Lap, Minimum Lap Time, and Fixed Lap Mode.

The Lap Timing Menu contains settings for the Lap Timing Mode, such as Setting and clearing start and split lines, resetting lap timing data, the split time display period, split-to-split time, rolling lap time, one-shot mode and gate width.

The Display Menu contains settings for the display modes available on the unit, such as units, screen configurations, LED configurations, etc.

The About section will display information about the hardware and firmware of the OLED Display as well as the hardware and firmware of the connected VBOX unit.
