Mounting and Connecting VBOX LapTimers
This page contains mounting options and information about how to connect your VBOX LapTimer (RLVBLAP-R and RLVBLAP-S) unit to power and testing systems.
Antenna Placement
Mounting VBOX LapTimers with Side Connectors (RLVBLAP-S)
Mounting Options
 |
Standard Accessory - RLACS287 The RLACS287 Lightweight Windscreen Suction Mount is the mount that is delivered with the LapTimer as standard. |
 |
Optional Mounting - RLACS286 The RLACS286 Roll Cage Camera Mount with Thumb Nut is an alternative mount for the RLVBLAP-S LapTimers. You can purchase this on the VBOX Motorsport Online Store. |
 |
Optional Mounting - 3M Dual Lock You can purchase and use Dual Lock tape to attach the LapTimer to a dashboard. Not sold by Racelogic |
Hardware Connections
Standalone
With VBOX Video HD2
With Video VBOX Pro
Mounting VBOX LapTimers with Rear Connectors (RLVBLAP-R)
Mounting Options
 |
Standard Accessory - RLACS359 The RLACS359 Rear Connector Bracket Assembly is the mount that is delivered with the LapTimer as standard. |
|
Optional Mounting - 3M Dual Lock You can purchase and use Dual Lock tape to attach the LapTimer to a dashboard. Not sold by Racelogic |
Hardware Connections
Standalone

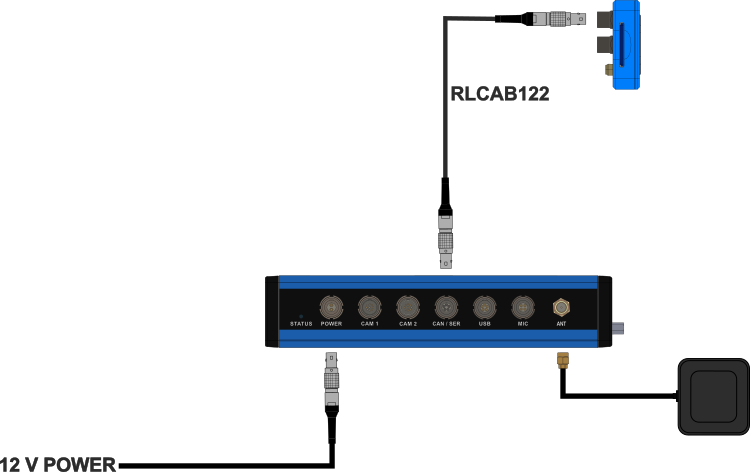

With VBOX Video HD2
With Video VBOX Pro
