This page contains information about how to use the VBOX LapTimer (RLVBLAP-R and RLVBLAP-S) as an OLED Display with your HD2 test system.

Using VBOX LapTimer as OLED Display with a VBOX Video HD2

When the LapTimer is connected to a VBOX Video HD2 unit with a VBOX LapTimer Connection Cable (RLCAB122), the LapTimer will check for the presence of a VBOX Video HD2 unit when it is powered up and automatically boot in OLED Mode.

In OLED Mode, it will have the same features and functionalities as the DSP07 OLED Display.

Connect the LapTimer to the VBOX Video HD2 as shown below.

Note: To achieve this functionality you must use the specified RLCAB122 cable (sold separately).

Using VBOX LapTimer as OLED Display with a VBOX Video HD2

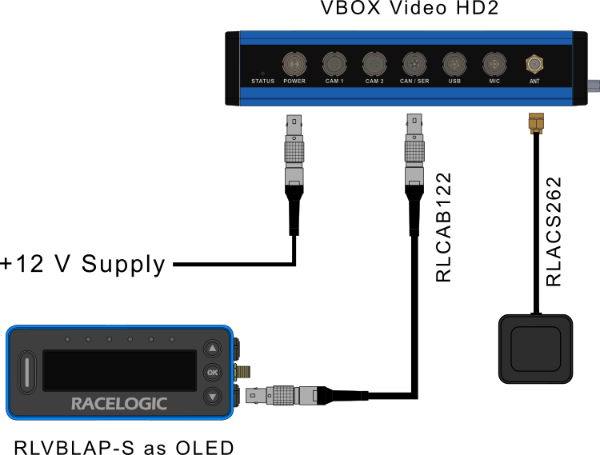

VBOX LapTimer with Side Connectors (RLVBLAP-S)

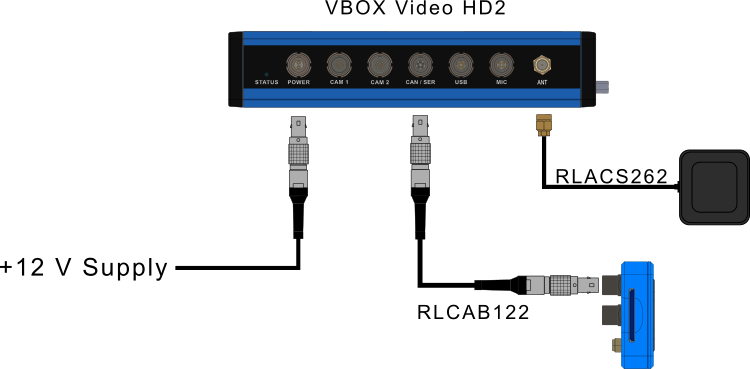

VBOX LapTimer with Rear Connectors RLVBLAP-R
