Recording/Replaying RS232 With LabSat 3 Wideband

Recording

  1. Connect the ‘RS_Rx’ and ‘GRN’ ports of the expansion connector to the appropriate wires/cable.
  2. Fit the expansion connector to the LabSat.
  3. Power up the LabSat 3 Wideband and navigate to the ‘Digital’ section of the menu. Select the ‘RS232’ option.
  4. Pressing the ‘REC’ button on the front of the LabSat will begin the recording. The LabSat will record all serial messages available.


Replaying

  1. Connect to the ‘RS_Tx’ and ‘GRN’ ports on the LabSat 3 expansion connector.
  2. Fit the expansion connector to the LabSat.
  3. Highlight the previously recorded scenario and press the ‘Play’ button on the front of the LabSat to start the scenario replay.

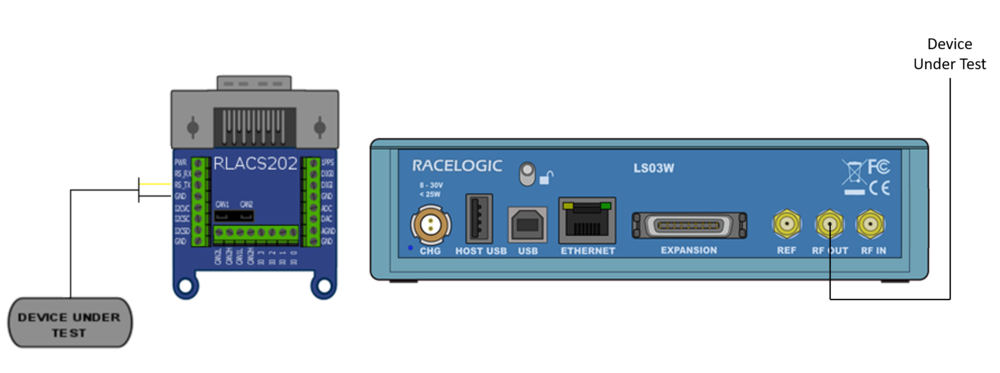

replaying_rs232 (1).png

If you need any further information about using the LabSat 3 Wideband for recording and replaying RS232 data, please get in contact with the Racelogic Support Department.
