02 - SGA Full bridge circuit

Wires can be run into the Strain Gauge Amplifier using the three mini cables glands. This allows the lid to be replaced, enabling secure connections to the internal screw terminals without leaving them or the scale and offset adjustment screws exposed.

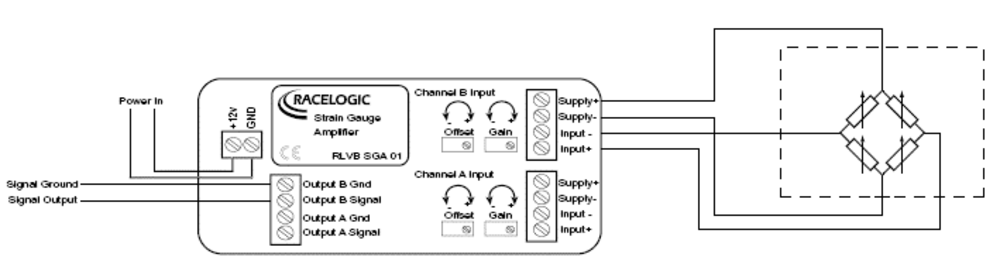

fullbridge (1).png


When using the SGA in conjunction with a full bridge load cell, no additional equipment is required. Simply connect the load cell to the SGA as shown in the diagram above.
