03 - TC PIN Out and Wiring Information
.png?revision=1)

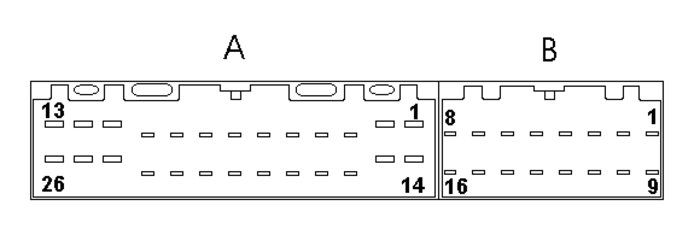

Connector A
| PIN | Description | Wire Colour |
|---|---|---|
| 1 | GND | Black |
| 2 | VIGN | Red |
| 3 | POT | Green |
| 4 | WSPA1 | Red |
| 5 | WSPA2 | Blue |
| 6 | WSPA3 | Yellow |
| 7 | WSPA4 | Green |
| 8 | I/P 1 | Red |
| 9 | I/P 2 | Orange |
| 10 | I/P 3 | Yellow |
| 11 | O/P 1 | Red/Black |
| 12 | O/P 2 | Orange/Black |
| 13 | O/P 3 | Yellow/Black |
| 14 | GND | Black |
| 15 | 5V | Red |
| 16 | GND | Blue |
| 17 | ON/OFF | N/C |
| 18 | RPM | White/Black |
| 19 | GND | Yellow/Green |
| 20 | CSWITCH | - |
| 21 | I/P 6 | Pink |
| 22 | I/P 5 | Grey |
| 23 | I/P 4 | Green |
| 24 | O/P 4 | Green/Black |
| 25 | O/P 5 | Grey/Black |
| 26 | O/P 6 | Pink/Black |
Connector B
| PIN | Description | Wire Colour |
|---|---|---|
| 1 | I/P 7 | White/Red* |
| 2 | I/P 8 | Orange/Red* |
| 3 | GND | - |
| 4 | CONT1 | - |
| 5 | DIAG TX | Blue |
| 6 | DIAG RX | Red |
| 7 | GND | Green |
| 8 | O/P 7 | Green/Red* |
| 9 | O/P 8 | Grey/Blue* |
| 10 | GND | - |
| 11 | CSWITCH | * |
| 12 | CONT3 | - |
| 13 | CONT2 | - |
| 14 | GSHIFT | Blue |
| 15 | 12V | Red |
| 16 | 12V | - |
* - Only on TC8
