05 - VBOX Broadcast Camera settings


In the example below, the left hand image has a Gamma of 2, which shows a big difference in brightness between the lightest and darkest parts of the image. The right hand image has a Gamma of 0.25 which drastically reduces the difference between the light and dark areas of the image.

3 (1).png


Advanced Camera Settings

Colour correction matrix

The colour correction matrix is calibrated for the colour response of the image sensor used in the supplied cameras. These values can be changed to effect colour ‘grading’.

4 (1).jpg

5 (1).png

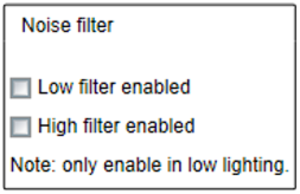

Noise Filter

The noise filters can be enabled to reduce the level of detail in the image which reduces quality but will also reduce the size of the video file and remove unwanted sensor noise from the image.

6 (1).png
