02 - VBOX Sport Battery and Charging

Last updated
Save as PDF
Share
1. Share
2. Tweet
3. Share

Check battery level

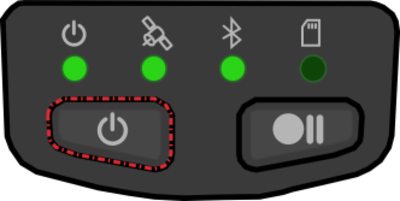

To check the remaining battery time, briefly press the power button. The LEDs will illuminate to indicate the charge level, with each LED representing 25% of the remaining charge.

batt (1).png

75% battery remaining

Charging

You can charge the VBOX Sport with the provided USB cable. Connect it to a powered USB port or the optional in-car 12 V charger. During charging, the power LED will flash slowly. Once the internal battery of the VBOX Sport has been fully recharged, the Power LED will change to a double flash. This should not take more than 4 hours.

Note: When the power LED starts double flashing, it is indicating that the unit is no longer accepting charge. In most cases, this is due to the battery being fully charged, however, it can also indicate that the unit has an inadequate power source or that the battery is not charging at all. You can determine if it is due to the battery being fully charged by checking the unit's battery level as described above.

charge (1).png

With a fully charged battery, VBOX Sport will provide at least six hours of battery life. During typical use, the battery life can be more than eight hours.
