RLACS206
This page contains the technical specifications for the RLACS206 Passive GPS/GLONASS Antenna.

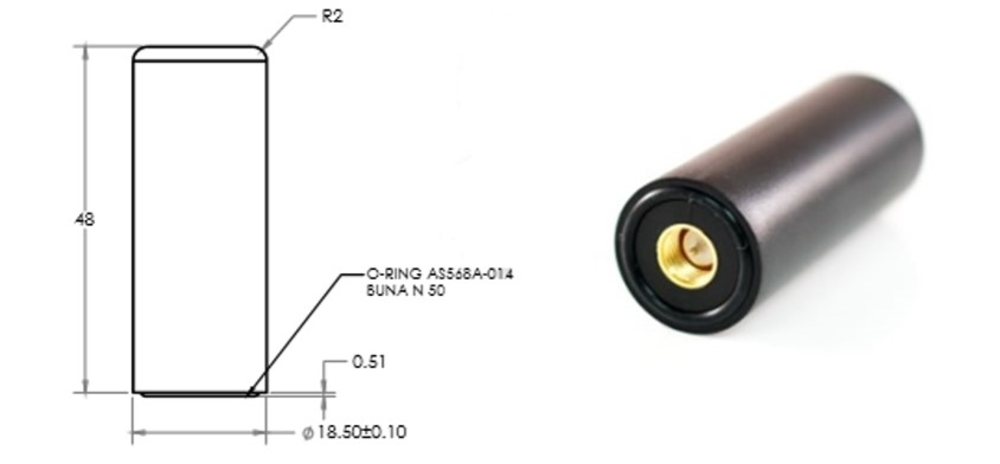

The RLACS206 is a dual band antenna designed for both GPS/Galileo and GLONASS. The RLACS206 is a screw-on design, featuring an integrated SMA connector.
.jpg?revision=1)
Specification
| Frequency | 1575 MHz (GPS/GAL), 1602 MHz (GLONASS) |
| Polarization | RHCP |
| Antenna element peak gain | 1.5 dBic |
| Axial Ratio | 0.5 dB (typical) / 1 dB (maximum) |
| VSWR | 1.5 (maximum) |
| Impedance | 50 Ohm |
| Operating temperature | -40 to 85˚C |
| RF connector | SMA |
