02 - LabSat3W Components

LabSat 3 Wideband has been designed to be portable and simple to use allowing virtually anyone to gather field test signals without in depth training. Recording GNSS signals is as simple as positioning the antenna and pressing one button. The sunlight-readable graphic display gives instant feedback of record status and can show live histogram data to verify satellites in view during recording. Back at the Lab, recorded signals can be replayed at the push of a button for repeatable, reliable testing.

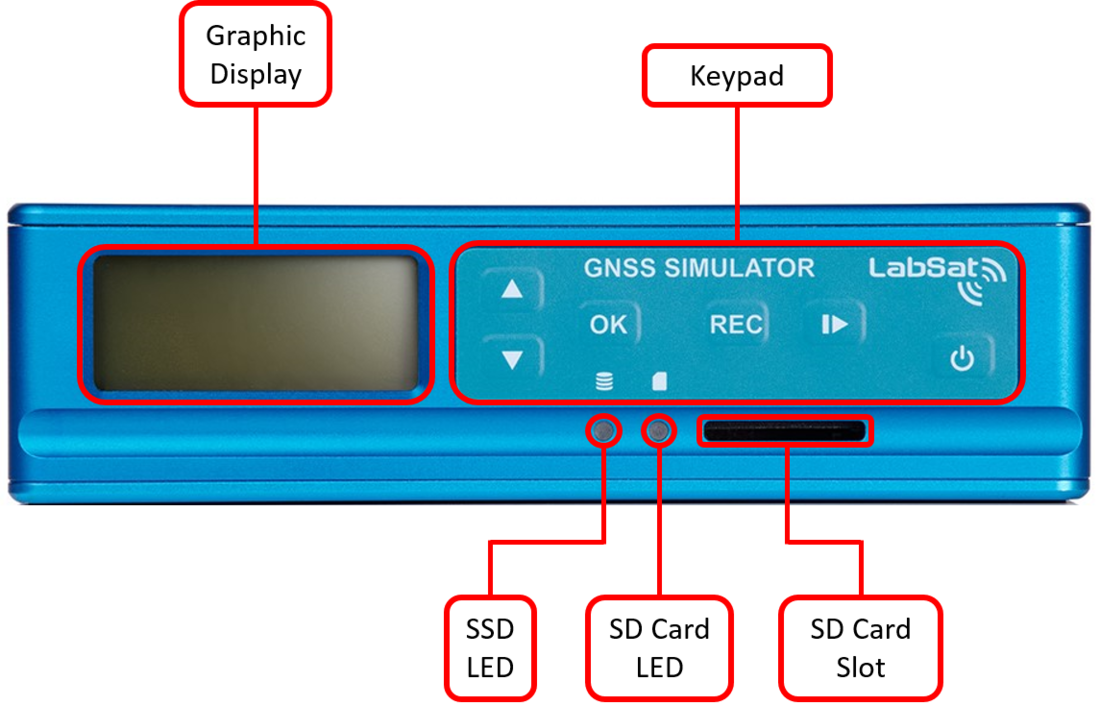

LabSat 3 Wideband Front

front_components (1).png

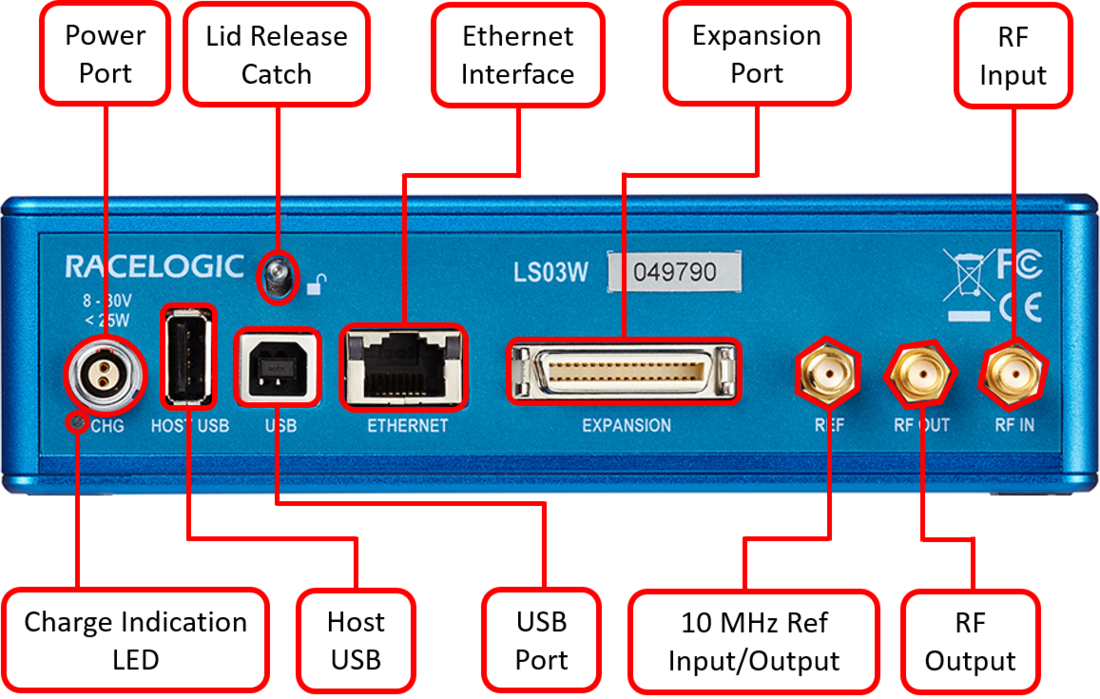

LabSat 3 Wideband Rear



front_components1 (1).png





Name Type Description
PWR 2 pin LEMO 8 - 30 V DC Power Supply input
HOST USB USB ‘A’ Connection of USB Storage devices and WiFi Dongle
USB USB ‘B’ NMEA data output
ETHERNET RJ45 Remote access and control
EXPANSION 36 Way MDR 1PPS, Digital I/O, CAN, RS232
REF SMA 10 MHz Reference Clock Input/Output
RF OUT SMA Output RF signal
RF IN SMA Input RF signal (RP variants only)
