01 - ADC Introduction

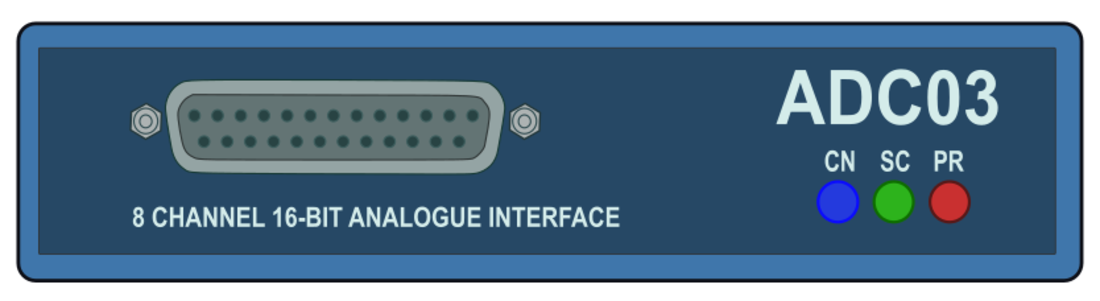

ADC03 is an 8-channel 16 bit analogue voltage interface for use with Racelogic VBOX, Video VBOX and third party data loggers.

Each channel is electrically isolated and provides bipolar voltage measurement with a DC accuracy of ±2 mV

1a (1).png

VBOX Setup software supplied with ADC03 allows scale and offset of the voltage reading for conversion into real data.

1b (1).png


Fit an in line 100 mA fuse when using +vbatt pin on 25 way connector to power sensors. Failure to do this could result in damage to the ADC03 and VBOX

Key features

  • Voltage input ±50 V
  • 16 bit Resolution
  • ±2 mV DC accuracy
  • Synchronous sampling of all channels
  • Bi-polar voltage input
  • Internal scale + offset for conversion to real data
