Base Station PIN OUTS

Connector 1 - POWER (Lemo 2 PIN)
PIN | I/O | Function | Range |
---|---|---|---|
1 | I | Power+ | 7 - 18 V |
2 | I | Ground | 0 V |
Connector 2 - RS232 (9 PIN SUB-D)
PIN | I/O | Function | Range |
---|---|---|---|
2 | O | RS232 Transmit | +/- 12 V |
3 | I | RS232 Recieve | +/- 12 V |
5 | I | Ground | 0 V |

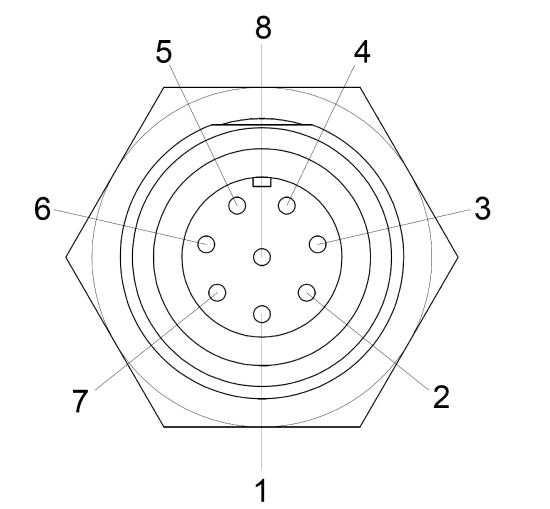

Connector 3 - Power / RS232 (8 PIN Bulgin)
PIN | I/O | Function | Range |
---|---|---|---|
1 | O | RS232 RTS | +/- 12 V |
2 | O | RS232 Transmit | +/- 12 V |
3 | I | RS232 Receive | +/- 12 V |
4 | O | External Radio Power + | Vin |
5 | RS232 Ground | 0V | |
6 | I | Power + | Typically 19 V (30 V Max) |
7 | I | RS232 CTS | +/- 12 V |
8 | Power in/out Ground | 0 V |
Note: It is possible to power/charge the Base Station with the lid down using PIN 6 for power and PIN 8 for ground.
