ADAS 3 Target - Server Radio - EU (RLRTM243TS)

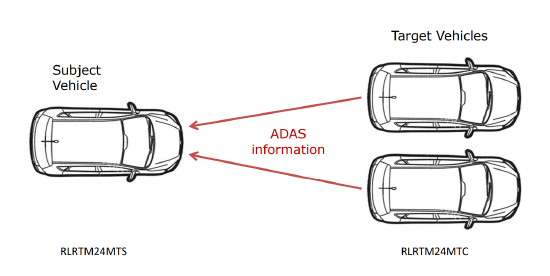

| ADAS 3 Target radios enable the simultaneous calculation of parameters from 3 target vehicles. The data flows only in one direction but allows 3 target vehicles to transmit their data to one subject vehicle, which then can calculate separation data live. | |
 |
.png?revision=1) |
| No. of items | Product Code | Description | |
|---|---|---|---|
| 1 | RTM24E-V2 | VBOX ADAS Radio for multiple target (subject vehicle) | |
| 1 | RLCAB032 | Serial PC cable for radio | |
| 1 | RLCAB005 | 5-way Lemo to 5-way Lemo Cable - 2 m | |
| 1 | RLACS218 | Magnetic mount radio antenna - 2 m cable |
Specifications
| Input Voltage | 8 to 30 V DC |
| Input Current - Receiving | < 200 mA |
| Input Current - Transmitting | < 200 mA |
| Radio Transmission Power | 10 mW |
| Base Station Duty Cycle | < 10% |
| Carrier Frequency | 2.4 GHz |
| Radio Data Rate | 500 kbit/s |
| RS232 Data Rate | 115,200 bit/s (configurable) |
| Approvals | CE-approved for European use |
Physical
| Module Dimensions | 95 mm x 60 mm x 33 mm |
| Operating Temperature | - 20 °C to + 60 °C |
| Storage Temperature | - 40 °C to + 85 °C |
Transmission Range
| Environment | 10 mW |
|---|---|
|
Permitted in countries such as |
EU |
|
Difficult Environment (e.g. buildings, reinforced concrete) |
120 m (400 feet) |
|
Open environment with antennas on ground level (e.g vehicle roofs) |
400 m (1,300 feet) |
|
In view with Base Station antenna at height (e.g. building roof) |
2,400 m (8,000 feet) |
| Note: Obstacles such as walls and trees can greatly affect the range | |
