2.4 GHz Telemetry Radios (RTM24)
|

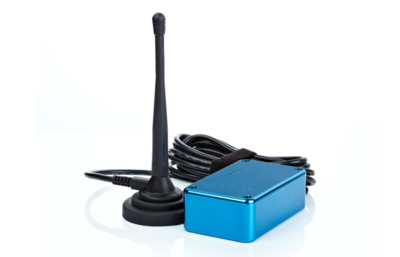

The RTM24 radios are designed for use with the VBOX product range and have a maximum range of 2400 m. Each module is supplied with a magnetic mounting antenna and contains a high-power radio modem capable of transmitting and receiving RS232 serial data. It can be connected to a VBOX or Base Station with a single cable. The RTM24 radios can be used with a Base Station to provide DGPS corrections to a VBOX. They can be used to provide the link between two or more VBOX units at a range of 600 m, which is used for ADAS testing where you need to take measurements of vehicle separations. You can also use them to transmit VBOX serial data from a remote unit to a laptop PC at a maximum rate of 20 Hz. All the RTM24 radios are available with a transmission power of 10 mW, 50 mW or 125 mW, depending on the application location. |
 |
Transmission Range
| 10 mW | 125 mW | 50 mW | |
|---|---|---|---|
|
Permitted in countries such as |
EU |
USA, Canada, Russia, China |
Japan |
|
Difficult Environment (e.g. buildings, reinforced concrete) |
120 m (400 feet) |
200 m (600 feet) |
120 m (400 feet) |
|
Open environment with antennas on ground level (e.g vehicle roofs) |
400 m (1300 feet) |
500 m (1600 feet) |
400 m (1300 feet) |
|
In view with Base Station antenna at height (e.g. building roof) |
2400 m (8000 feet) |
3000 m (10,000 feet) |
2400 m (8000 feet) |
| Note: Obstacles such as walls and trees can greatly affect the range | |||
|
VBOX to PC Telemetry Radio EU |
VBOX to PC Telemetry Radio Japan |
VBOX to PC Telemetry Radio USA/Canada/Russia/China |
|
DGNSS Telemetry Moving Base Server Radio EU |
DGNSS Telemetry Moving Base Server Radio Japan |
DGNSS Telemetry Moving Base Server Radio USA/Canada/Russia/China |
|
DGNSS Telemetry Moving Base Client Radio EU |
DGNSS Telemetry Moving Base Client Radio Japan |
DGNSS Telemetry Moving Base Client Radio USA/Canada/Russia/China |
|
|
DGNSS Telemetry Base Station RTK Server Radio Japan |
DGNSS Telemetry Base Station RTK Client Radio USA/Canada/Russia/China |
|
|
DGNSS Telemetry Base Station RTK Client Radio Japan |
DGNSS Telemetry Base Station RTK Client Radio USA/Canada/Russia/China |
|
ADAS 1 Target Bi-Directional Telemetry Radio EU |
ADAS 1 Target Bi-Directional Telemetry Radio Japan |
ADAS 1 Target Bi-Directional Telemetry Radio USA/Canada/Russia/China |
|
ADAS 2 Target Telemetry Server Radio EU |
ADAS 2 Target Telemetry Server Radio Japan |
ADAS 2 Target Telemetry Server Radio USA/Canada/Russia/China |
|
ADAS 3 Target Telemetry Server Radio EU |
ADAS 3 Target Telemetry Server Radio Japan |
ADAS 3 Target Telemetry Server Radio USA/Canada/Russia/China |
|
ADAS 2 Target Telemetry Client Radio EU |
ADAS 2 Target Telemetry Client Radio Japan |
ADAS 2 Target Telemetry Client Radio USA/Canada/Russia/China |
|
ADAS 3 Target Telemetry Client Radio EU |
ADAS 3 Target Telemetry Client Radio Japan |
ADAS 3 Target Telemetry Client Radio USA/Canada/Russia/China |
