RACELOGIC Support Centre

Channel Setup

  1. Last updated
  2. Save as PDF
This page contains an overview of the features and settings in the Channel Setup Menu in VBOX Setup Connected to VBOX 4.

The Channel Setup menu displays the channels that are available to be configured. The available channels will vary depending on the Racelogic modules connected to your VBOX unit and your configurations in other menus.

VBOX4 v1.1_Setup_ChannelSetup_Default_1000px.svg

Rescan Modules

VBOX4ADAS v1.1_Setup_ChannelSetup_Default_RescanModules.svg

If you connect or disconnect a module to the VBOX unit while VBOX Setup is already connected and running, you can click on the Rescan modules button to make it display an updated list of the currently connected modules.

Added Channels

VBSetup_VB4_ChannelSetup_InternalAD_expanded.svg

In the channels area, you will see a list of default channels that are available based on the current connections and configuration and any manually added channels. This section will update as you edit the configuration or add/remove modules.

Select a channel section by clicking on the section heading, such as CAN Input or Internal A/D. This will open the selected section so that you can see the available channels and their previews.

Note: All added channels will automatically be logged to the SD card.

Edit

Click on a channel in the list to see more information about it or to edit the name, units, scale and offset for it.

Log

Default channels will always be logged and cannot be unticked.

Manually added channels from modules or CAN Input signals will automatically be ticked to log when added.

You can untick the box in the Log column for a channel you don't want to log.

Preview

The channel overview has a preview column where you can see the live signal from the input.

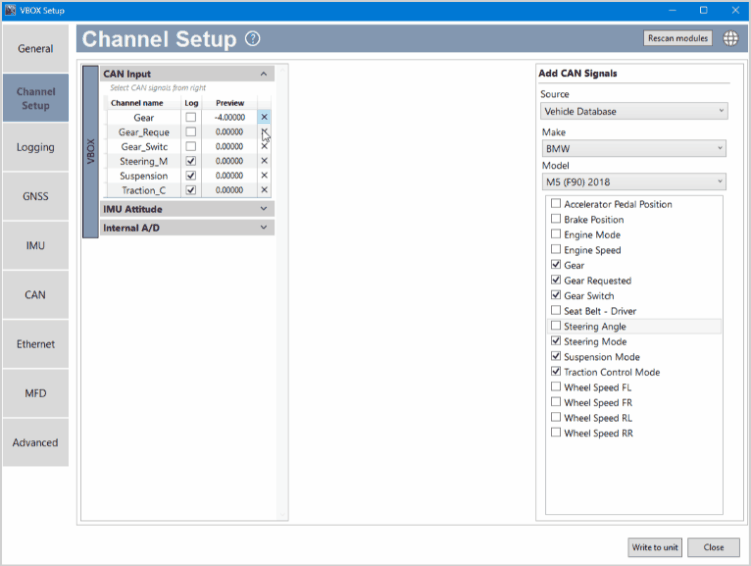

 Remove

You can remove manually added channels from modules or CAN input signals.

Click on the X in the final column for the relevant channel row to remove a channel.



 VBOX Channels

VBOX4ADAS v1.1_Setup_ChannelSetup_Default_VBOXChannels.svg

This section will always be available. It has two channel sections displayed by default with configurable channels:
CAN Input
VBSetup_VB4_ChannelSetup_CANInput_expanded_NoChannels.svg

You can add CAN signals you want to log by clicking on the CAN Input section heading in the channels overview and selecting the required source in the Add CAN Signals area on the right-hand side of the window. Tick the required signals in the list. The selected signals will populate in the CAN Input section in the channel overview area.

You can configure the CAN port in the CAN menu.
CANFD1 and CANFD2
VBSetup_VB4_ChannelSetup_CANFD_expanded_NoChannels.svg

You can add CAN or CANFD signals you want to log via the CANFD ports by clicking on a CANFD section heading in the channels overview. Select the required source in the Add CAN Signals area on the right-hand side of the window. Tick the required signals in the displayed list. The selected signals will populate in the respective CANFD section in the channel overview area.

You can configure the CANFD port(s) in the CAN menu.
  CAN Signal Sources
VBOX4ADAS v1.1_Setup_ChannelSetup_Default_AddCANSignals.svg

When you want to configure the CAN signals to the different CAN ports, you can use on of the following sources:

  • Vehicle Database
  • Import from dbc/ref
  • User Defined
Vehicle Database

Select a vehicle make and model and tick the channels you want to log from the list of available channels below.
VBOX4 v1.1_Setup_ChannelSetup_CANInput_AddCANSignals_Source_VehicleDatabase.svg
Import from dbc/ref

Import an existing file, .dbc or .ref, from your local computer. When the file has been imported, you can tick the channels you want to log from the list of available channels below.
VBOX4 v1.1_Setup_ChannelSetup_CANInput_AddCANSignals_Source_DBC.svg
User defined

You can define a custom CAN channel by clicking the Add New button and entering a name and other relevant information in the configuration options below.
VBOX4 v1.1_Setup_ChannelSetup_CANInput_AddCANSignals_Source_UserDefined.svg
Internal A/D
VBSetup_VB4ADAS_ChannelSetup_InternalAD_expanded.svg

This area contains channels such as Analogue Inputs by default:

  • ADC_CH1
  • ADC_CH2
  • ADC_CH3
  • ADC_CH4

Click on a channel to edit the Channel name, Units and Scale & Offset.


Additional VBOX Channels

As you configure your VBOX, more inputs and channels may become available, such as:

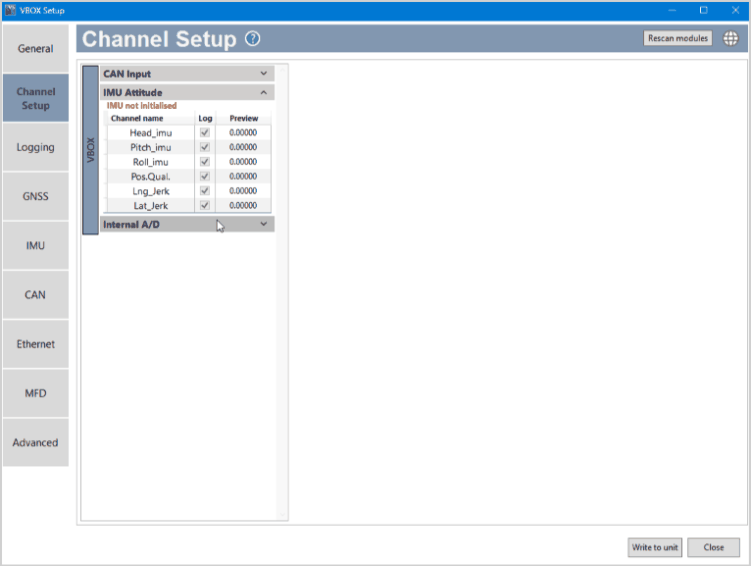

IMU Attitude
VBSetup_VB4ADAS_ChannelSetup_IMUAttitude_expanded.svg

When you enable IMU integration in the IMU menu, the following IMU attitude channels will be logged:

  • Head_imu
  • Pitch_imu
  • Roll_imu
  • Pos.Qual.*
  • Lng_Jerk
  • Lat_Jerk

*Position quality is for use in robot modes and is a numerical representation of the quality of the position.

You can find more information about the different channel definitions here.
