This is an overview of VBOX Setup connected to VBOX 4.

Connection

The connection between the VBOX unit and the computer should be made via USB or Bluetooth for optimum performance.

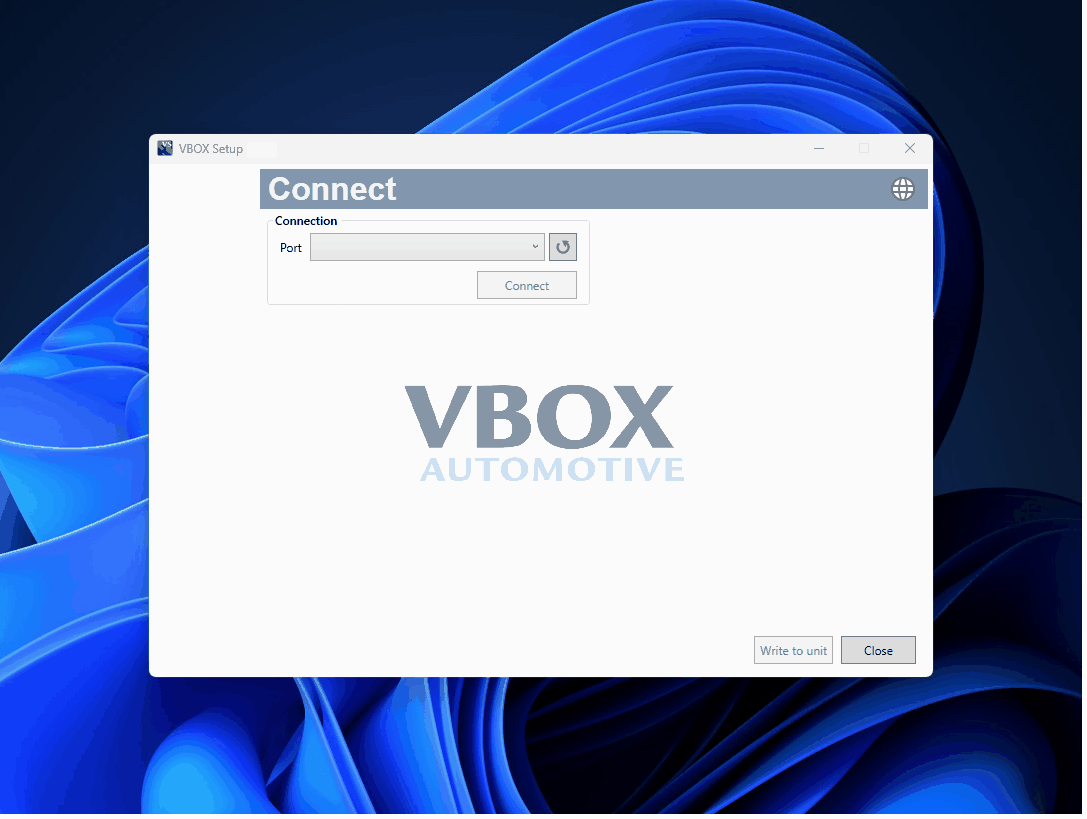

When the VBOX unit is physically connected and powered, open the VBOX Setup software and use the dropdown list to select the COM port that your VBOX unit is connected to. Click Connect. VBOX Setup will open the configuration window for your VBOX unit.

Note: You may see an auto-detect message if you have changed the baud rate from the default value. Click Yes to allow the different baud rates to be scanned.

Software Overview

Available menus	The menu tiles in the sidebar allows you to select between the different menus. Click button to open that menu.
Menu title	Displays the title of the menu you are currently in.
Help	Depending on which menu you have open, the question mark icon will open up the corresponding User Guide page in the Racelogic Support Centre, to provide more information about the features and settings in this menu.
Language	Change the operating language.
Settings area	The main area in the application window (white background) contains the options for the menu you have selected.
Load	Click on the Load icon to load an existing configuration file into VBOX Setup.
Save	Click on the Save icon to save your current configuration to a VBOX configuration file on your local computer.
Reset Defaults	Click on the Reset defaults button to reset the current configuration to the VBOX Setup default settings.
Write to unit	After making changes to the configuration, you must press the Write to unit button to make sure that the settings are uploaded to the connected VBOX unit.
Close	Closes the software, if changes have not been saved to the unit, you will be prompted to save the settings.
