How to Change The Video VBOX Camera Lens
High Resolution Camera
- To remove the old lens from the high res bullet camera, use a pair of long nosed pliers to unscrew the lens from the camera body.
.jpg?revision=1) |
.jpg?revision=1) |
.jpg?revision=1) |
- You can then simply screw in the new lens in the same way.
- It is important to note that tightening the lens focuses the camera image, so when the new lens is fitted, it does not need to be fully tightened - to locate the best focus point, either record some test data and check the recorded video, or use a preview monitor to look at the live view.
Low Resolution Camera

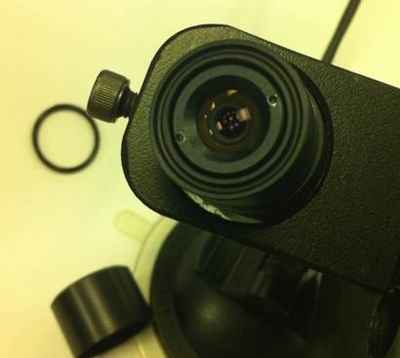

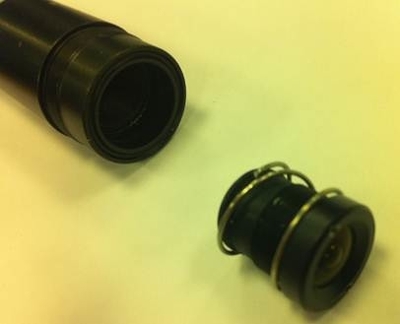

- To remove the old lens from the low res bullet camera, unscrew the lens cap to reveal a small flathead screw in the side of the lens casing.
- Use a small screwdriver to fully loosen the screw, then simply unscrew the lens from the from the camera body. You can then simply screw in the new lens in the same way.
.jpg?revision=1)
- Rotating the lens focuses the camera image, to locate the best focus point, either record some test data and check the recorded video or use a preview monitor to look at the live view.
- When you locate the correct focus point, tighten the screw and refit the lens cap.
