This page has an overview of the Serial menu in the VBOX Setup Software connected to a VBOX 25 Hz Speed Sensor (v2). This is where you can configure the mode and ethernet settings for the serial stream transmitted by the VBOX unit.

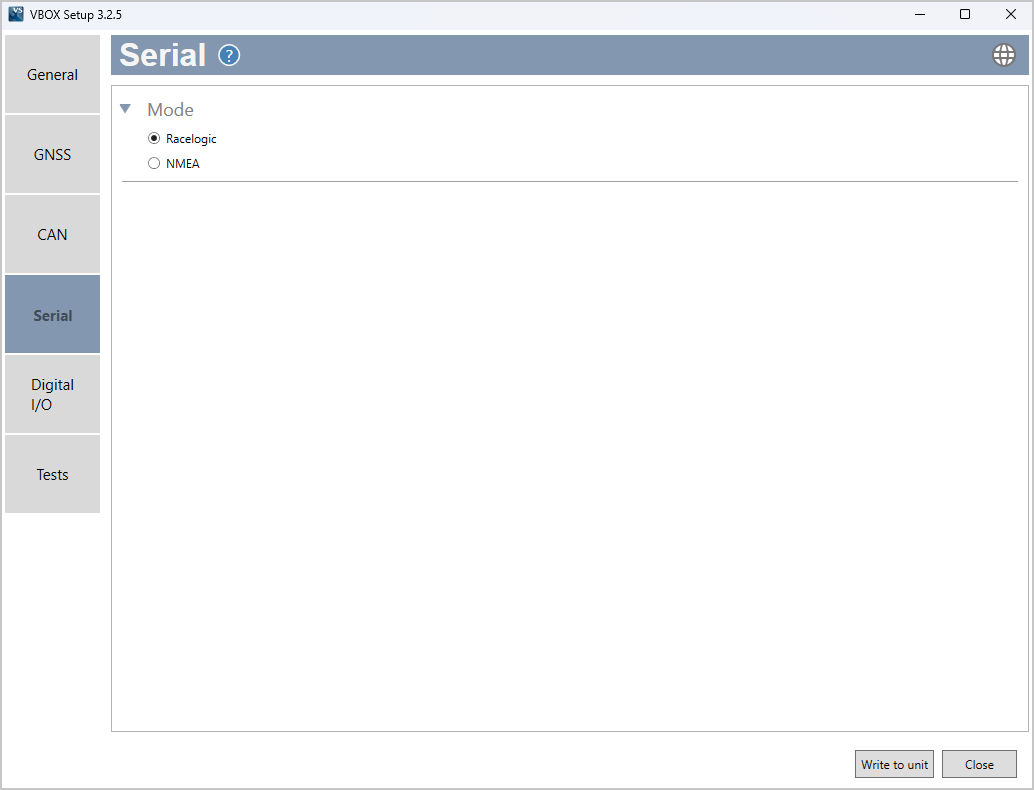

VBSS25-V2_VBOX Setup_Serial.png

Mode

This selects which format the VBOX unit will use to output Serial data.

Racelogic

For Serial communication with other Racelogic products.

NMEA

For user-defined NMEA message output.

Note: If you select the NMEA message mode, the NMEA messages section will become available.

NMEA Messages

If the NMEA message format is selected, the following options become available:

Baud rate

The required serial baud rate can be selected from this drop-down menu, selectable from 4800 – 115200 kbit/s (115200 kbit/s by default).

Update rate

The update rate of the NMEA messages can be changed using this drop-down list, selectable from 1 –25 Hz (1 Hz by default).

Message selection

NMEA messages can be selected and deselected for transmission by checking and unchecking the boxes next to each message type.

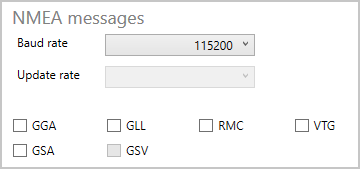

VBSS25-V2_VBOX Setup_Serial_NMEA Messaged.png
