R139 Category "B" Brake Assist Systems

Introduction

The ‘R139 - Category "B" Brake Assist Systems’ test is a plugin for the VBOX Test Suite software.

This test allows the user to carry out a test in accordance with the R139 regulation.

Ribbon Bar

The R139 Brake Assist Systems test has a unique 'Test Setup' ribbon bar, from which the test and test area can be configured.


VBTS Test Setup Ribbon Bar 2.png

Note: Ribbon bar icons may move/ resize dependent on the Software window size.

Test

 VBTS Test Setup Test.png

Configure

The 'Configure' button displays a pop up window whereby the parameters of the test can be defined.

Report

The 'Report' button creates a report from the current test results.

Maths Channel

Allows the user to create unique maths channels. For more information on maths channels, please see the ‘Maths Channels’ section.

Save Settings

The 'Save Settings' button will save this individual test setup and will appear in the ‘Saved Settings’ area of the ‘Add Test’ window.

This test will also be added to the list of  R139 Brake Assist Sysytems under the 'Brake' icon on the 'Home' tab for easy switching of the current test.

Export (Ctrl+E)

The 'Export' button displays a drop down menu which allows the user to export either the selected results or line results to either a .csv or .txt file. It is also possible to export the data to a .vbo file for later analysis without the need to take the file from the VBOX's compact flash card. This can also be accessed by using the keyboard shortcut 'Ctrl+E'.

Gate

The Gate area will mirror the gate options available in each test. You can find more information on the individual Test Page. If you have not chosen a test, the Gate area will default to the following:


Add Gate (Space)

Clicking the Add Gate button will add a virtual gate to the chart and map at the point of the cursor. You can also add a gate at your current location by pressing the space button on your keyboard. The gate is indicated by green lines. The currently selected gate will be indicated by a blue line.

When you have added a gate, you can specify the gate width. The default gate width is 20 m.

Note: If you change the gate width, the last used gate width will be used as the default width for the next gate.

You can now use the gates as start or end conditions.

Note:  Opening a plugin (either as a new tab or overwriting an existing one) will clear all set gates.  If you do this you must, therefore, redefine the gates before you amend the test configuration to set start/end conditions.

IMPORTANT
When you want to add a gate, you must make sure that the vehicle is travelling faster than 0.8 km/h. This is so that the system can ascertain the heading for the gate.

Rename

Click on this button to rename the currently selected gate line.

Delete

Click on this button to delete the currently selected gate line.

Export

Click on this button to export the created gate(s) as a .spl file that can be reused at a later date and can be used with another VBOX product.

Import

Click on this button to import a previously saved or provided .spl file. When this is imported, the gates will be added in the order that they were saved in the .spl file.

Data Column

VBTS Test Setup Data Column.png

Add

The 'Add' button adds a column to the test results area. Selecting this button will bring up a drop down window where the user can select a channel to display in the test results window.

Sort Ascending/Sort Descending

The Sort Ascending and Sort Descending buttons will sort the values based on the currently selected column in the results area.

Run

VBTS Test Setup Run.png

Select All (Ctrl+A)

The 'Select All' button allows the user to tick every run in the results area at once. This can also be accessed by using the keyboard shortcut 'Ctrl+A'.

Deselect All (Ctrl+E)

The 'Deselect All' button allows the user to de select every run in the results area at once. This can also be accessed by using the keyboard shortcut 'Ctrl+E'.

Edit Data

The 'Edit Data' button allows the user to enter session specific data such as driver name, track facility and weather data.

Help (F1)

VBTS Help.png


Pressing this 'Help' button will automatically open an internet browsing window and load the relevant section of the Racelogic Support Centre. This page will only be displayed if there is a valid internet connection. If there is no valid internet connection, a cached version of the relevant section (from the last software update) will be presented in PDF form. This can also be accessed by using the keyboard shortcut 'F1'.

Test Configuration

Selecting the 'Configure' button will display a pop up window where the user can define the parameters of the test. These include the start and end conditions, as well as the pass conditions.

Use the up and down buttons VBTS Settings Collapse.png to the right of the parameters to Expand and Collapse the parameter headings.

Start On

This parameter denotes when the test will start. From the drop down menu, the user can set the test to begin when pedal pressure CAN channel reaches a user defined value (20 N by default).

Minimum Trigger Speed

To eliminate any false triggers (i.e, slowing for a turnaround), the software allows the user to enter a ‘Minimum Trigger Speed’, whereby any application of the brake when below this speed will not start a test run (100 km/h by default).

End Speed

The speed at which the test will end (15 km/h by default).

Brake Parameters

These parameters allow the selection of the Brake Pressure and Pedal Stroke channels to be used for the test.

VBTS R139 Settings.png

Time/Distance Between Runs

This option should be ignored as it serves no purpose for this plugin.

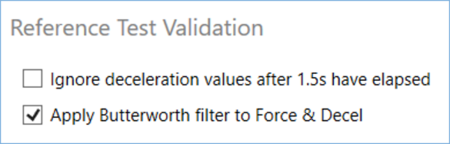

Reference Test Validation

VBTS R139 Ref Test Validation.png

Ignore Deceleration Values After 1.5 s

This option will ignore deceleration values 1.5 seconds after the brake pedal has been pressed. Sometimes after this period, the deceleration channel can become noisy, which in turn can make the brake test deceleration curve extend out of the test corridor, leading to an invalid test.

Butterworth Filter

Selecting this option will apply a Butterworth filter of 2 Hz to both the pedal force and deceleration values.

Start of Test Temperature

This option should be ignored as it serves no purpose for this plugin.

Completing a Test

To start an online test, the user must first select the correct COM port from the ‘Online’ drop down menu in home tab. Once connected to a VBOX, the dashboard will change to show the 'START', 'STOP' and 'RESET' buttons.

Starting, Stopping and Resetting a Test

By pressing the 'START' button, the software will add a tab to the Test Results area ready to be populated with results once the start and end criteria have been met. The 'START' button will also change to a 'PAUSE' button, allowing the user to pause the test. To resume the test, simply press the 'RESUME' button.

To finish a test, simply press the 'STOP' button. This will stop all open tests. Once the stop button has be pressed, future results cannot be added to that results tab. Pressing the 'START' button will open up a new results tab, however once the stop button has been pressed, the user will be required to calibrate the wheel speeds again (if wheel speed channel(s) are selected) before a new test can be started.

If, for any reason, a mistake has been made during the test, it is possible to restart the test by pressing the 'RESET' button and again this will require a calibration of the wheel speeds.

Calibrating the Wheel Speeds

To allow for different wheel diameters to be easily and consistently used in the test, the software has an auto calibrate function that automatically applies a scaling factor to the CAN Wheel Speeds to match the GPS Speed. This process is only required when a wheel speed channel(s) has been specified in the 'Test Configuration' menu.

When the user first presses the 'START' button, a dialogue window will appear that contains the calibration instructions.


VBTS Calibration.png


To successfully calibrate the wheel speeds, the user must drive at constant speed of 20 km/h (+/- 2 km/h) for 5 seconds, ensuring not to rapidly accelerate, decelerate or any other manoeuvre that may induce wheel slip. Once this period has been completed, the software will display a ‘Calibrated’ message and the test is able to be started.

Once calibrated, the user will be able to show and analyse both a calibrated wheel speed and a Wheel Slip %.

IMPORTANT - The calibration period is also required when in ‘Offline’ mode, so it is extremely important that the unit is logging before the calibration procedure is carried out, otherwise the software will not produce any test results.

Test Results Area

The test results area is the area that displays all of the results from the current test. Within this area it is possible to include/exclude results from the chart area, display the average/max/min values and also easily identify any runs which have not met the pass criteria.

Every time a new test is started (via the 'START' button on the dashboard), or a new file is loaded, a new tab will be added to the test results area, allowing the user to switch between separate tests or files and compare runs from each. A session can be removed from the results area by pressing the ‘x’ icon on the tab.

Rename file

It is possible to rename the session tab by double clicking on the tab header. Changing the session tab within the software will automatically change the name of the locally saved .vbo file.

Session Data

By pressing the 'Edit Data' button steering_wheel1 (11).jpg next to the name of the file/run or in the ‘Test Setup' ribbon bar, a new window will be displayed whereby the user can add various different pieces of vehicle and test information, such as:-

  • Vehicle
    • Vehicle Model
    • Vehicle Number
    • Driver Name
    • Vehicle Weight
    • Transmission
    • Engine Size
    • Power
    • Gross vehicle mass
    • Threshold Force
    • Threshold Deceleration
    • Threshold Pressure
  • Brakes
    • Brake Material
    • Disc/Drum Material
    • Pad Material
    • ABS/ESC Manufacturer
    • ABS/ESC Model
    • ABS/ESC Hardware/Software
  • Wheels/Tyres/Weight
    • Wheel Material
    • Wheel Dimension
    • Tyre Make
    • Tyre Dimensions
    • Tyre Model
    • Tyre Pressures
    • Weight
  • Test
    • Test Date
    • Test Track
    • Test Facility
    • Comments
  • Conditions
    • Road Type
    • Weather
    • Temperature
    • Track Temperature
    • Humidity %
    • Wind Speed

When in 'Offline' mode, this information will be saved into the .vbo file meaning that this information will be recalled every time the file is loaded into VBOX Test Suite.

When in 'Online' mode, a newly-created session will be populated with session data from the previous session.


This information will be included in the test report to allow the user to understand under what conditions the test was conducted.


To save time, it is possible for the user to import and export the session information for use in other sessions (the entire range of data is exported not just the visible screen).

Once the session information has been completed, it is possible to export the data to a .vbses file. This file will contain all the session information that can then be imported into the open session information field.

Result Columns

VBTS R139 Results.png

Reference Test

Along the top of the Reference Test results area are some default columns. These columns are:-

  • Run – Indicates which run number the results relate to, with run one being the first run completed. There is also a selection box that, when ticked, includes that run in the graph and into the Average/Max/Min/Standard Deviation calculations. Once selected, a coloured square will appear to indicate which colour this run is displayed as on the graph.
  • Time – The total time the run has take.
  • Distance – The total distance travelled in that run.
  • Start Speed – The speed at which the test started.
  • aMAX – The maximum deceleration during the brake stop.
  • 90% aMAX – The 90% value of the maximum deceleration during the brake stop.
  • aABS – The average deceleration of all the values above the 90% aMAX value.
  • Pass/Fail – Whether the run has passed or failed the test, showing that the deceleration did not exceed the +/-0.5 s corridor as shown in deceleration graph for the brake stop.

Once at least 5 valid brake tests have been completed/selected, the following results will also be populated above the columns.

  • aABS – The average deceleration of all the values above the 90% aMAX value.
  • fABS – Deceleration value calculated from the 'maF' curve (deceleration plotted against pedal force).
  • fABSupper – The 70% value of fABS.
  • fABSlower – The 70% value of fABS.
  • aBAS – The BAS threshold value, 85% value of aABS.
Assessment Test

Once at least 5 valid brake tests have been completed/selected, assessment test results will be populated within the Assessment Test tab.

Along the top of the Assessment Test results area are some default columns. These columns are:-

  • Run – Indicates which run number the results relate to, with run one being the first run completed. There is also a selection box that, when ticked, includes that run in the graph and into the Average/Max/Min/Standard Deviation calculations. Once selected, a coloured square will appear to indicate which colour this run is displayed as on the graph.
  • Time – The total time the run has take.
  • Distance – The total distance travelled in that run.
  • Start Speed – The speed at which the test started.
  • Pass/Fail – Whether the run has passed or failed the test, showing that the deceleration did not exceed the +/-0.5 s corridor as shown in deceleration graph for the brake stop.

The following results will also be populated above the columns.

  • aABS – The average deceleration of all the values above the 90% aMAX value.
  • fABS – Deceleration value calculated from the 'maF' curve (deceleration plotted against pedal force).
  • fABSupper – The 70% value of fABS.
  • fABSlower – The 70% value of fABS.
  • aBAS – The BAS threshold value, 85% value of aABS.
Adding a Column

It is possible to add columns to the test results area by selecting the ‘Add’ button on the ‘Test Setup' tab in the ribbon bar. Selecting this button will display a drop down list of all available channels which the user can select to display as a results column. By default, this value is displayed as an ‘At End’ value, whereby the column will display the value of that parameter at the end of the run.

It is also possible to right click anywhere in the test results area and select the ‘Add’ option from the dropdown menu.

To remove a column, simply select the ‘x’ icon that appears when you hover over the column title. If a column has been removed, it can be added again by selecting the ‘Add’ button and choosing the desired channel.

Editing a Column

As default, a column is added as an ‘At End’ condition. It is possible to change this by selecting the column title you wish to edit (once selected, the column will be highlighted in yellow) and changing the condition in the ‘data column’ area in the ‘Test Setup’ tab of the ribbon bar.


VBTS Edit Column.png


It is possible to choose the following conditions for the main results:-

  • Avg – The mean average of the parameter during the run.
  • Max – The maximum value of the parameter during the run.
  • Min – The minimum value of the parameter during the run.
  • Delta – The difference between the start and end value of the parameter.
  • Std Dev – The standard deviation of the parameter during the run.
  • At Start – The value of the parameter at the start of the run.
  • At End – The value of the parameter at the end of the run.
  • Gate (if a gate has been added) – The value of the parameter at the crossing of the specified gate line (e.g. Start/Finish).


It is also possible to change the displayed parameter, by using the other drop down menu on the ribbon tab and selecting the desired parameter.

Sorting the Results

It is possible to either sort the result in either ascending or descending order. To do this, first select the desired column and then click either the ‘Sort Ascending’ or ‘Sort Descending’ buttons from the ribbon bar. This action can also be performed by right clicking in the test results area.

Filters

It is possible to filter results by right clicking on a value within the cell results table (e.g. Time (s)). You can then choose to include only results with a value equal to the selected value or that have a value that is <= than or >= than the selected value for that channel. Multiple channels can be filtered, a notification bar above the results shows which filters are applied. To remove the filters, click on the 'x' within this bar.

Copying Cells (Ctrl+C), Rows or Columns

Individual results cells can be copied so that they can be pasted into another piece of software. To copy a cell, select the required cell, right click and then select ‘Copy’ or use the keyboard shortcut 'Ctrl+C'. To select multiple cells, either left click with the mouse and drag or hold down the 'Ctrl' when selecting. To select all cells between 2 cells, hold down the 'Shift' key when selecting.

It is also possible to copy an individual row, column or the entire results table. This is achieved by right clicking the required row or column and selecting ‘Copy Row’, ‘Copy column’ or ‘Copy all’.

Renaming a Column (F2)

To rename a column, you can either Double Click on the column title, right click the required column and select ‘Rename Column’ or use the keyboard shortcut 'F2' whilst the column is highlighted. Renamed columns will be included within an exported file and a generated report.

Export

Click on this button to export the created gate(s) as a .spl file that can be reused at a later date and can be used with another VBOX product.

Average/Max/Min/Standard Deviation Values

It is possible for the software to automatically calculate the Average/Max/Min/Standard Deviation values of all relevant runs by ticking the selection box next to the relevant run number.

Once more than one result has been selected, the average, maximum and minimum values will be displayed, and once more than two results have been selected, the standard deviation of the selected runs will be also be displayed.

Selecting the tick box next to the ‘Avg’ line will add a moving average ‘best fit’ curve to all of the selected runs.

Interim Results
Columns

When Interim result(s) have been specified in the Test Configuration as 'Columns', each interim result is shown as a column within the right hand side of the results table in the order it has been specified. If multiple 'At' or 'Between' conditions are met within a run, only the first result will be displayed.


Interim results Columns.png


To change the channel used for an interim result(s), select the result and click on the existing channel used within the ‘Test Setup' tab in the ribbon bar or right click on the result and and selecting the existing channel from the dropdown menu. Selecting this will display a list of all available channels.


It is also possible to add columns to the interim result(s) by selecting the result and clicking on the ‘Add’ button on the ‘Test Setup' tab in the ribbon bar or by right clicking on the result and and selecting the ‘Add’ option from the dropdown menu. Selecting this will display a list of all available channels which the user can select to display as a results column associated to that particular interim result.


Interim results Columns2.png


To remove a column, simply select the ‘x’ icon that appears when you hover over the column title.


Note: If a channel has been changed or extra columns have been added to the interim result(s) and the Test Configuration is then Saved, the changed or extra columns will be applied to all interim results when that file is then reloaded back in to the software, not just the results specified.

Separate Table

When Interim result(s) have been specified in the Test Configuration as a 'Separate Table', a new window will appear in the results area that will display the interim results from a selected run. If multiple runs are selected, this window will display the interim results from the last selected run. As well as displaying interim results, the start conditions are also shown.


Interim results Sep Table.png


The standard columns in the Interim Results window are:-

  • Description – This will explain why this line result was reported.
  • Speed – The speed at the time the line condition was met.
  • Distance – The distance travelled from the start until the line condition was met.
  • Time – The total time from the start of the test run until the line condition was met.
  • Distance (Delta) – The distance difference between the line result and the previous line result.
  • Time (Delta) – The time difference between the line result and the previous line result.
  • Speed (Delta) – The speed difference between the line result and the previous line result.


Columns can be added, edited and sorted in the same way as the results window can be, however the Line results have slightly different reporting conditions. These are:-

  • Avg – The mean average of the parameter during the run.
  • Max – The maximum value of the parameter during the run.
  • Min – The minimum value of the parameter during the run.
  • Delta – The difference between the start and end value of the parameter.
  • At Line – The value of the parameter when the line condition was met.

Dashboard

Along with the usual dashboard functionality, the ‘R139 - Category "B" Brake Assist Systems' test has some extra options that can be displayed to the user.

By selecting the 'Add Gauge' button from the dashboard tab, a drop down menu will appear whereby the user can select 'Test' and then the desired parameter to be displayed. On selection, a gauge will be automatically added to the dashboard. Any gauges displaying a result of a test, such as an average or maximum value, will have a 'Result' icon VBTS Dashboard Guage Result.png to the left of the gauge name to indicate that it is either a result of the previous run if viewing live data, or the currently selected run if viewing a saved file.

All Result Column parameters are also available as a gauge.

Showing Test Results on the Dashboard

By default, the ‘R139 - Category "B" Brake Assist Systems’ test has UTC time and Speed gauges included within the dashboard area.

aABSfABSfABSupper, fABSlower and aBAS gauges are also included, and will be populated once 5 valid brake assessment tests have been completed/selected.


VBTS R139 Dash.png


It is possible to display the time and distance test results from the last run completed as a gauge on the dashboard.


VBTS Dashboard Test Guage1.png


It is also possible to show the current run number on the dashboard to give an easy, clear indication of the amount of runs completed. An 'OK Runs' gauge can also be added to indicate how many runs have met any specified pass conditions.


VBTS Run Ok Runs Gauge.png

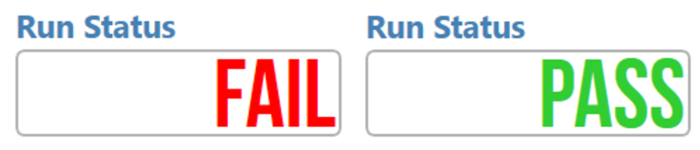

Run Status

'Run Status' gauge is available for use when conducting live testing to show the status of the last completed run with regards to the Pass Conditions. It will display as a green 'PASS' when the last run has met all Pass Conditions and a red 'FAIL' when any of the Pass Conditions limits have been exceeded.


Distance/Time Since Run

The user can also add gauges to the dashboard that show a live value of either time or distance since the completion of the last run.


timedist_since_run (1).png

Chart

Once a valid brake test has been completed/selected, the Chart area will populate with Speed, Decel and Pedal force channels against time. If defined within the Settings window, Pedal stroke and Brake pressure 1 and 2 channels will also populate.


VBTS R139 Chart.png


The Decel channel is displayed so that the user can visually evaluate that the reference brake stop was completed correctly. It includes 2 dotted guide lines either side of the deceleration trace, creating a corridor up to 2 s from the start of the test. The corridor has an offset that is 0.5s before and 0.5s after the deceleration line, and the deceleration curve must be within the corridor for the brake test to be valid.

Creating a Report

VBOX Test Suite allows the user to turn the results table into a custom report whereby the user can easily compare and display the results from their brake test. The report can include selected runs from multiple sessions, not just the currently selected session.

This report will include all of the previously entered session data, along with a table of results and bar graphs depicting brake test information.


The user can then choose to print or save this report. A sample of this report* can be seen below:-


VBTS R139 Report.png

  • Was this article helpful?
