HD2 - Bar Graph Element - Windows


VBOX Video HD2 software comes supplied with a library of bar graph elements. The user also has the option to create their own bar graph using a PNG, JPEG or BMP image file.

Adding a supplied bar graph element

Open the bar graph library by clicking the ‘Bar’ icon from the top menu.

 1 (1).png

A drop-down menu will then appear, allowing a bar graph to be selected from the library. Clicking on a chosen bar graph will load it into the scene.

Note: Hovering over any of the bar graph thumbnails will cause a larger preview of the bar graph to appear.

Bar Graph Vertical.png

Selecting the 'Filter' drop down on the left enables you to filter the Bar Graphs shown between default and custom created.


Once a bar graph has been added to the scene, it can be clicked and dragged to the desired location.

Bar graphs within the library will have pre-defined settings. These settings can be changed as shown here.


Creating a new bar graph

When creating a new bar graph element, an image for the background is required, unless using a transparent background, in which case tick the ‘Transparent’ option. An example image is shown below.

Note: Images can be resized within HD2 software.


Bar graph background image

To create a new bar graph, click the ‘Bar’ icon from the top menu.

 1 (1).png

Within the drop down menu, selecting the ‘New’ option will add a new bar graph element into the scene.

Bar Graph New.png

Double click on the new bar graph to load a background image.

36 (1).png

Now the background image has been loaded, the settings of the bar graph can be defined.

Bar Graph Settings

When an element is selected, its settings are shown in the right hand panel.



Defining a bar graph parameter

The data set to display on the bar graph can be changed using the two drop-down menus within the parameter section.

The first drop-down menu defines the source. Select either CAN, GPS, Heart rate monitor (if being used with a heart rate element), Maths Channels or OBD.

Note: CAN, Maths Channels and OBD options will only appear if they have been set up by the user.

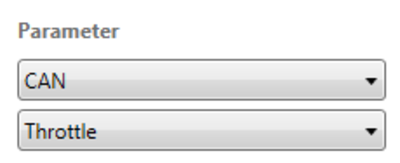

9 (1).png

The second drop-down list defines the channel to be shown. In the example above, a CAN input is set to display Throttle pedal data.

A number of GPS parameters are available to choose from, such as the following:

  • Satellites
  • UTC time
  • Latitude
  • Longitude
  • Speed
  • Heading
  • Height
  • Longitudinal acceleration
  • Lateral acceleration
  • Combined acceleration
  • Vertical speed
  • Local time
  • Day of month
  • Month
  • Year
  • Distance since power-up
  • Distance since stationary
  • Time stationary
  • Time moving
  • Radius of turn
  • Gradient (%)
  • Solution type

More information on the parameters can be found here.

Changing the units

Within the parameter section, speed, acceleration or distance channels can be set to display in different units.

The options available are:

  • Speed – km/h, mph, kts, m/s, ft/s
  • Acceleration – g, m/s², ft/s²
  • Distance – m, ft, km, mi, nmi

Bar Setup

Set fill area

Move the bar graph fill area to the desired location and re-size it using the icon in the bottom right corner.

37 (1).png

Set bar colour

After the bar size and location has been set, choose the colour the bar will fill with.

To set a specific RGB colour, click ‘Advanced’.

38 (1).png

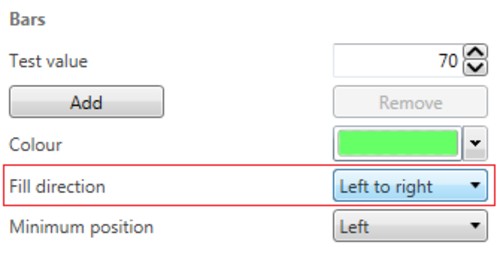

Fill direction

Set the direction in which the bar graph will fill.

25 (1).png

21 (1).png

Left to Right

22 (1).png

Right to left

23 (1).png

Bottom to Top

24 (1).png

Top to Bottom

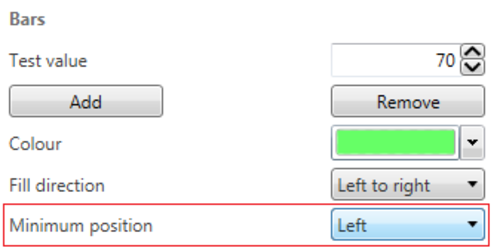

Minimum position

The minimum position setting will automatically move depending on fill direction. For most cases, the user will not need to change this.

28 (1).png

If configuring a bar graph for a negative value, the minimum position may need to be changed.

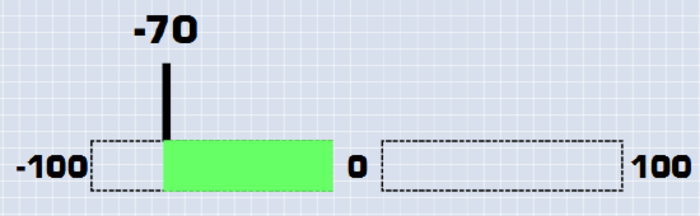

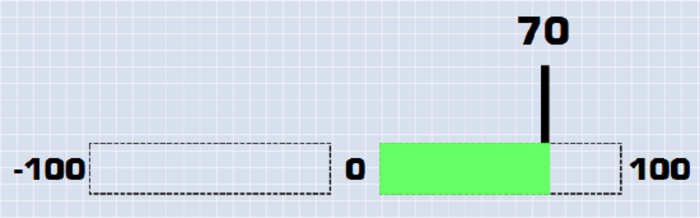

For example:

26 (1).png

27 (1).png

As the left hand bar graph is showing negative values, it will need to be set as shown below.

29 (1).png

Bar Range

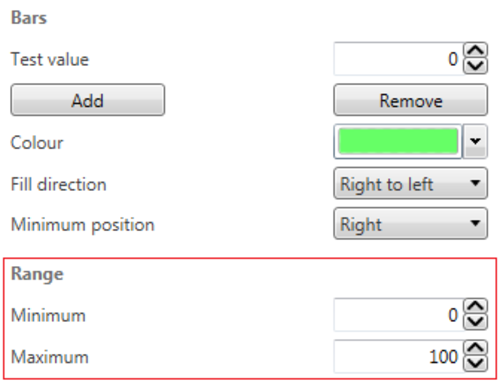

The last step is to define the minimum and maximum values of the bar graph. Use the 'Test Value' box to check what will be shown when different values are received.

32 (1).png


Using multiple bars

Multiple bars can be added into a single bar graph element. When using multiple bars, the process above must be followed for each bar individually.

Additional bars are added into a bar graph element using the ‘Add’ button.

33 (1).png

To set up each bar, click on it so it is highlighted. The settings defined in the 'Bar' area will apply to the selected bar.


Each bar can have its range, colour and fill direction defined individually.

Note: Only one parameter can be set to a bar graph element.


Loading a new bar graph background image

Bar graph background images can be changed by clicking the search icon 40.pngnext to the currently loaded image.

Note: The backgrounds can be made transparent by ticking the ‘Transparent’ option.

12 (1).png

Elements and their associated settings can be duplicated within a scene by either right clicking on the element, selecting 'Copy' from the dropdown then right-clicking in an empty area and selecting 'Paste' from the dropdown, or by using keyboard shortcuts 'Ctrl + C' (Copy) and 'Ctrl + V' (Paste).

Element Copy.png Element Paste.png

Elements can be removed from the scene in two ways; either by right-clicking on the element, selecting 'Delete' from the dropdown and confirming the prompt, or by pressing the 'Delete' key on a keyboard, and again, confirming the prompt.

Element Delete.png
