How to view the NMEA output from a LabSat 3 during replay

LabSat 3 will output an NMEA string via the rear USB port during replay. To view the NMEA data the LabSat 3 must be connected to a PC via an A to B USB cable, for this connection to be successful the LabSat 3 drivers must be installed on the PC being used. LabSat drivers can be downloaded from the ‘Software & Firmware’ page on the LabSat website.

When a replay is started the NMEA output will automatically begin, at this point the user needs to open a terminal program, and for this example Tera Term will be used.

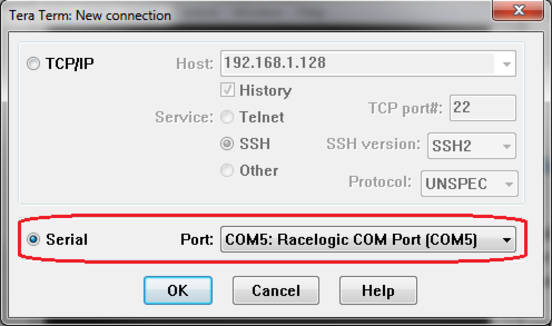

Open the terminal program and select the COM being used by LabSat 3. Once connected ensure that the baud rate is correctly configured, 115200.

1 (11).png 2 (22).png



When successfully configured the NMEA string will be displayed as seen below.

3 (1).png

For information regarding the NMEA output format, navigate to the ‘What is the NMEA output format during a LabSat 3 replay’ article within the LabSat 3 Knowledge Base.
