| Specification | Value |
|---|---|
| Constellation | GPS: L1, L2, L5; Galileo: E1, E5a/b, E6; GLONASS: L1, L2, L3; BeiDou: B1, B2, B3; QZSS: L1, L2, L5; NavIC L5 & S-Band; In Band SBAS, user defined frequency bands like Iridium & SiriusXM radio |
| Nominal Output Signal Level | -93 dBm/MHz @ 0 dB Variable attenuator provides between +20 dB and –69 dB of adjustment during replay |
| RF Channels | 3 |
| RF Channel 1 Centre Frequency | Selectable |
| RF Channel 2 Centre Frequency | Selectable |
| RF Channel 3 Centre Frequency | Selectable |
| Number of Satellites Observed | All in view |
| Sampling frequency | 10.23 MHz, 30.69 MHz, 58 MHz |
| Bandwidth | 10 MHz, 30 MHz, 56 MHz |
| Quantisation | 1, 2 or 3 bit (I & Q) |
| Data Format | I & Q |
| User Control | 6 Button Membrane Keypad |
| Display | Backlit LCD Dotmatrix |
| Additional Logging | 2 x CAN channels, 2 x Digital channels, 1 x RS232 channel |
| Removable Battery Pack | Yes |
| Media Storage Included | 1 TB SDD and 8 GB SD Card (SD card for firmware upgrade only) |
| Active Antenna Voltage Supply | 2.8 - 4.6 V DC |
| Reference Oscillator - TCXO |
|
| Reference Oscillator - OCXO |
|
| Operating Voltage | 8 - 30 V DC |
| Size | 167 mm x 128 mm x 46 mm |
| Weight | 1.2 kg |
| Operating Temperature | 0°C to +60°C - the unit will shut down in conditions outside the operating temperature range |
| Storage Temperature | -20°C to +60°C |
BATTERY NOTES
- The battery will not charge if the ambient temperature is below 0°C or above +45°C (the charger will shut down outside this range).
- The battery will discharge whilst in storage and the discharge rate will increase at higher storage temperatures.

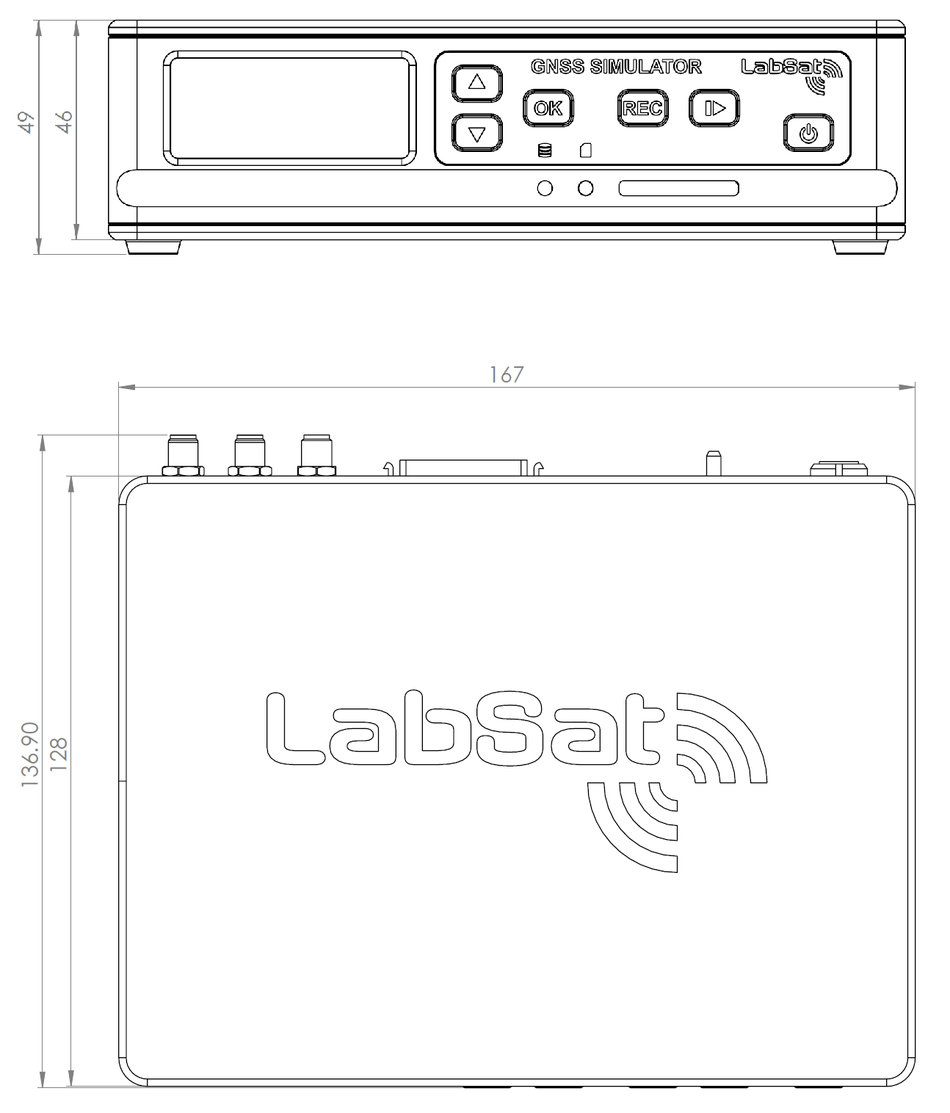

The following illustration indicates the dimensions of LabSat 3 Wideband in mm:
