Racelogic recommend that all LabSat devices are registered immediately on receipt. If you register your LabSat within its first year warranty, you will automatically receive an additional year's warranty.
Please go to www.labsat.co.uk/register and fill in all the details requested.
Registering your LabSat will enable you to easily communicate with our support team and your details will be available to our Support Team, in case you need any assistance in the future.
Any firmware/software updates will be available on the LabSat website.
Racelogic recommend that all LabSat devices are registered immediately on receipt. If you register your LabSat within its first year warranty, you will automatically receive an additional year's warranty.
Please go to www.labsat.co.uk/register and fill in all the details requested.
Registering your LabSat will enable you to easily communicate with our support team and your details will be available to our Support Team, in case you need any assistance in the future.
Any firmware/software updates will be available on the LabSat website.
Example of Replay using the internal SSD with preloaded scenario.
Briefly press the power button to power up LabSat 3 Wideband. Connect from the RF output on the rear of LabSat 3 Wideband to your GPS system antenna input. Use the 'UP/DOWN' arrows to select a file. Press the 'PLAY' button to start replay.
LabSat 3 Wideband contains an on board GNSS receiver that allows monitoring of the RF signals during record or replay. To show a live histogram of satellite signal levels detected by the on board receiver, press the 'OK' button during replay. Press the 'OK' button again to return to the replay status display. During replay, pressing the 'PLAY' button will halt replay and return to the file list.
Example of Recording your own file to the internal SSD card.
To record a new file, connect the LabSat 3 Wideband antenna to the RF input on the rear of the LabSat. Ensure that the antenna has a clear view of the sky, press the 'REC' button to start recording. Press the 'REC' button again to stop recording. While recording, if the SSD becomes full, recording will stop automatically. During recording, pressing the 'OK' button will switch the display to show a live histogram view of the satellite levels being received by the on-board GNSS monitor. Pressing the 'OK' button again will return to the record status display.
During recording, while using battery power, the GNSS monitor display will automatically revert to the record display after a short period to conserve battery power. This power save feature can be switched off but it is recommended to be left active for maximum battery life.

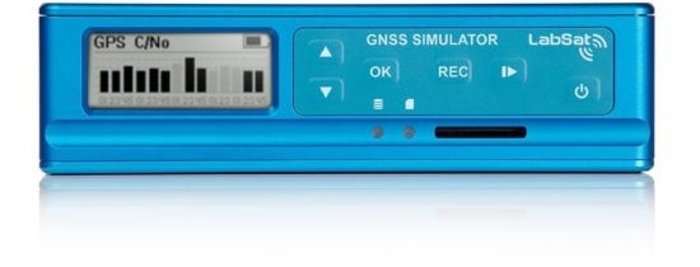

GNSS stands for Global Navigation Satellite Systems and is a general term that covers satellite positioning constellations belonging to different countries around the world. These include, among others, the United States ‘GPS’, the Russian ‘GLONASS’ and the Chinese ‘BeiDou’ systems. LabSat 3 Wideband is capable of recording and replaying the raw radio signals that are transmitted by the various constellations of satellites. LabSat receives the signal from an antenna just like a standard GNSS receiver but instead of processing each of the received signals to calculate a position fix, LabSat 3 Wideband samples and stores the antenna signal at very high speed.
When recorded RF signal is replayed by LabSat 3 Wideband into a standard GNSS receiver, such as a portable navigation system, the receiver will accept the signal as live, including all the velocity, delays and multipath effects.
This makes LabSat 3 Wideband invaluable for recording dynamic scenarios such as driving through a city in a vehicle. The benefits of using a recorded test signal are consistency and reliability. For example, if testing of a product involves going for a drive each time the receiver firmware is updated, the satellite positions and atmospheric conditions will all be different for every drive. If the drive is recorded once with LabSat 3 Wideband, the recorded signal can be replayed over and over on the bench saving hours of drive time and with the knowledge that conditions will be the same for each reply.
