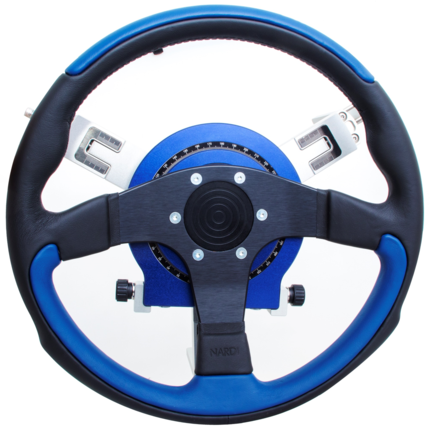

The RACELOGIC Steering Wheel Sensor is designed to accurately measure a vehicle’s steering angle or torque in tests such as ECE R79, ISO 4138 and ISO 7401. It has a CAN and an analogue interface, which means you can connect the sensor directly to VBOX 3i or another data logger.
The sensor is light and compact, with high dynamic response and a fine resolution of steer angle (0.1°). Easy access push buttons make it quick and simple to zero the steer angle and torque, once mounting is complete.

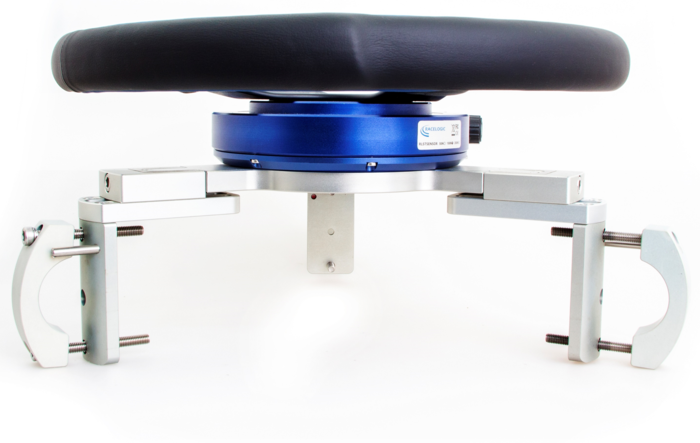

Existing steering wheel functions, such as vehicle control elements, will not be affected when using the Steering Wheel Sensor. A universal steering wheel adapter is also included, making it quick and easy to mount to any vehicle, without having to remove the actual steering wheel.
- CAN Bus output - connects directly to your CAN enabled DAQ (such as the VBOX 3i).
- Analogue output - connects directly to your analogue DAQ.
- Ideal for tests such as ECE R79, ISO 4138 and ISO 7401.
- 3 sensor variants, 50,100 and 200 Nm torque.
- Steering angle resolution 0.1°.
- Can be calibrated to ISO 17025 standard.
- Quick and easy to install - supplied with a universal mount.
- Does not interfere with the vehicle’s steering wheel controls.
| Product Code | Description |
|---|---|
| RLSTSENSOR | Steering Wheel Sensor, including 350 mm steering wheel (available in a choice of 50 Nm, 100 Nm or 200 Nm) and 2 m CAN/ Power cable |
| Universal steering wheel adapter (will fit Ø320–400 mm) | |
| Single-point suction holder MSW adjustment for the front window | |
| Transport case |
- It is also possible to order a larger steering wheel. If you require a steering wheel that is larger than 400 mm in diameter, or a customised spline adapter, please cohttps://www.racelogic.co.uk/index.php/en/raise-a-support-ticketntact Racelogic and we will be able to discuss this further.
- The steering wheel sensor can also be calibrated to ISO 17025 standard. Please contact Racelogic to arrange this.
