| Operating Temperature | 0 - 65°C |
|---|---|
| Storage Temperature | -20°C to +80°C |
| Weight | 234 g |

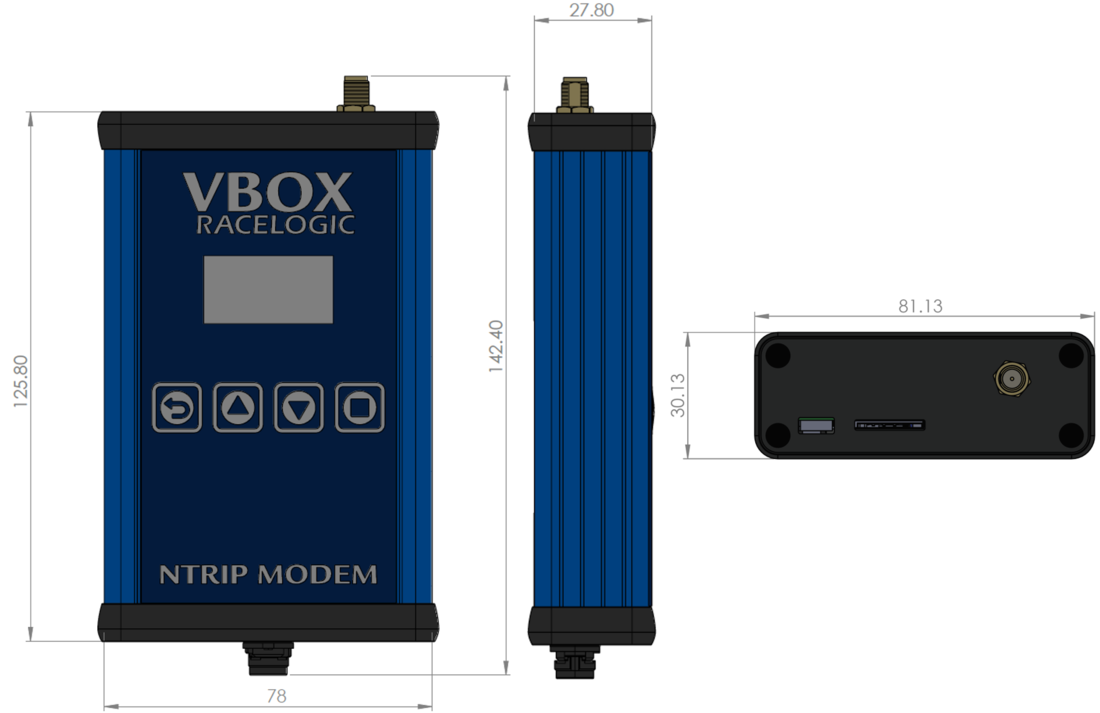

| Dimensions (mm) | 142.4 x 81.13 x 27.8 (l x w x d) |
| Protection Rating | IP20 |
| Supply Voltage | 12 V DC (7 – 30 V) |
|---|---|
| Protection | Over-voltage and reverse polarity protected |
| Power Consumption | <5 W |
| Frequency Bands |
|
|---|
| Wi-Fi | IEEE 802.11b/g/n 2.4 GHz |
|---|---|
| Access Modes | AP Mode (DHCP server) and Station mode (WPA and WPA2) |
| Internet Protocol | IPv4 |
| Cellular Antenna Connector | SMA Female 50 Ω |
|---|
| RS232 | 115200 kbit/s baud rate, 8N1, No flow control |
|---|
