The VBOX 3iS is a compact GNSS-aided inertial navigation system (INS) with Ethernet robot connectivity and the ability to utilise wheel speed data from a vehicle’s CAN bus.
In areas with poor satellite coverage, it can combine wheel speed and survey-grade GNSS measurements with the IMU data in a Kalman filter to maintain accurate measurements of speed, heading and position. It can also make brake stop distance and slip angle measurements at 100 Hz.
Being RTK (Real-time Kinematic) enabled, the VBOX 3iS unit offers cm-level accuracy when used with an RTCMv3 correction source. This makes is suitable as a Remote VBOX Target in a VBOX ADAS test or it can be used with a steering robot, which it can connect to via Ethernet.
VBOX 3iS Single Antenna
- 100 Hz GPS/GLONASS receiver
- Internal Inertial Measurement Unit
- CAN bus wheel speed data integration
- Pitch and roll angles with IMU integration
- ± 1.8 cm Brake stop accuracy
- RS232/ CAN bus/ Ethernet
- 50 cm position accuracy (using DGNSS

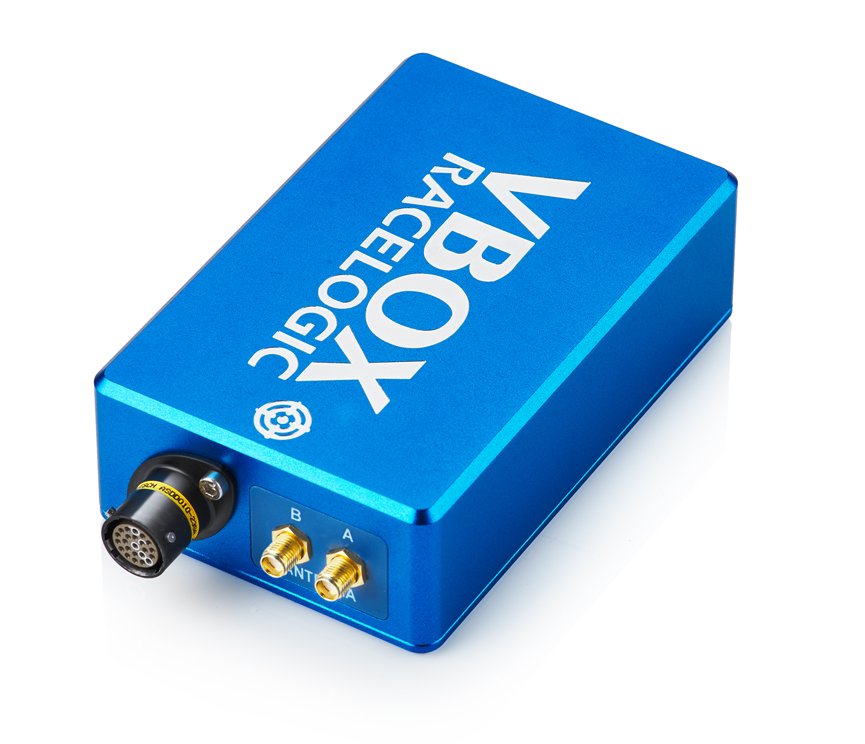

VBOX 3iS Dual Antenna RTK
- 100 Hz GPS/GLONASS receiver
- Internal Inertial Measurement Unit
- CAN bus wheel speed data integration
- Pitch and roll angles with IMU integration
- ± 1.8 cm Brake stop accuracy
- RS232/ CAN bus/ Ethernet
- <1 cm position accuracy with RTK
- Motion Pack for driving robots & guided soft targets (GST)
- Dual antenna for slip angle measurement at 5 locations
